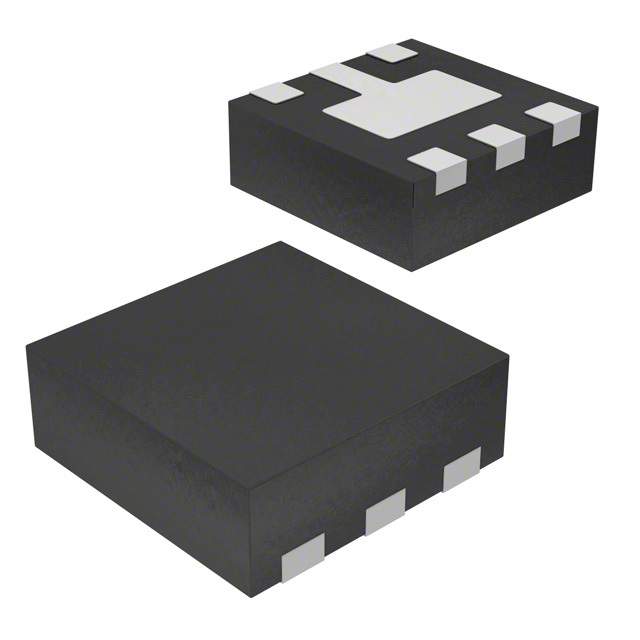

Same model may have multiple batches, images only for reference.
GMF05C-HS3-GS08 Vishay
Same model may have multiple batches, images only for reference.

GMF05C-HS3-GS08

Part No GMF05C-HS3-GS08
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 5VWM 12.5VC LLP756A
Datasheet
GMF05C-HS3-GS08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Vishay
Packaging Reel - TR
Status Obsolete(EOL)
Type Zener
Unidirectional Channels 5
STAND-OFF Voltage (Vwm) 5V (Min)
Minimum Breakdown Voltage 6V
Max Clamping Voltage 12.5V
Peak Pulse Current(Ippm) 12A (8/20μs)
Power Dissipation - Pd 200W
Applications General Purpose
Capacitance @ Frequency 126pF @ 1MHz
Temperature Range - Operating -55°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package LLP75-6A
Win Source Part Number 104580-GMF05C-HS3-GS08
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian GMF05C-HS3-GS08 CAD Model

Description

The Vishay Zener diodes are high-quality electronic components that are designed to provide reliable and efficient performance. These diodes are manufactured by Vishay and are available in a medium popularity range. The Win Source Part Number for this product is 104580-GMF05C-HS3-GS08. These diodes are suitable for use in a variety of electronic devices and systems.
