Same model may have multiple batches, images only for reference.

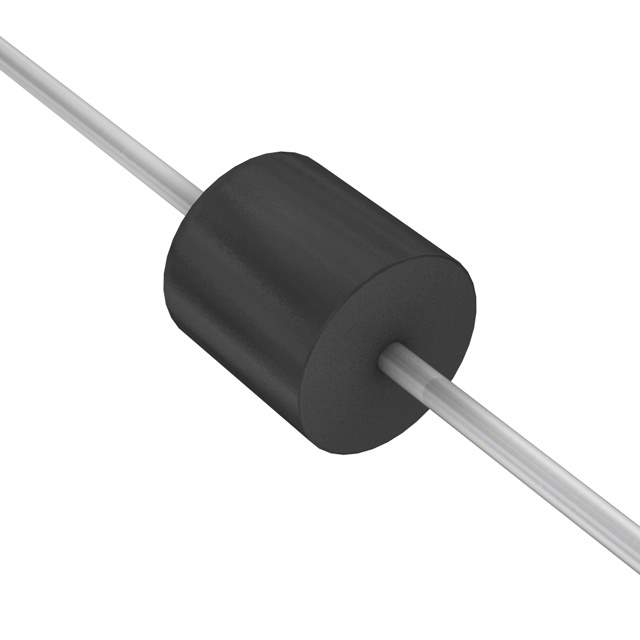

GI756-E3/54 Real Image
Same model may have multiple batches, images only for reference.

GI756-E3/54

Part No GI756-E3/54
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 600V 6A P600 / Diode Standard 600 V 6A Through Hole P600
Datasheet
GI756-E3/54 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Manufacturer Vishay General Semiconductor - Diodes Division
Packaging Reel - TR
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600 V
Current - Average Rectified (Io) 6A
Voltage - Forward (Vf) (Max) @ If 900 mV @ 6 A
Speed Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) 2.5 µs
Current - Reverse Leakage @ Vr 5 µA @ 600 V
Capacitance @ Vr, F 150pF @ 4V, 1MHz
Mounting Through Hole
Case / Package P600, Axial
Supplier Device Package P600
Operating Temperature - Junction -50°C ~ 150°C
Base Product Number GI756
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number GI756-E3/54GITR,GI756/4CT,GI756CT,GI756E354,GI756-E3/54GICT,GI756/4CT-ND,GI756CT-ND,GI756/4,GI756TR-ND,GI756TR,GI756,GI756/4TR,GI756/4TR-ND
Standard Package 800
Win Source Part Number 1325772-GI756-E3/54
Ultra Librarian 3D Model Ultra Librarian GI756-E3/54 CAD Model

Description

The Vishay General Semiconductor - Diodes Division 1325772-GI756-E3/54 is a standard diode with a voltage rating of 600V and an average rectified current of 6A.

  • Voltage: 600V
  • Average Rectified Current: 6A
  • Reverse Recovery Time: 2.5 µs
  • Forward Voltage: 900mV @ 6A
  • Package: P600 axial case
  • Mounting: through hole technology
  • Category: Discrete Semiconductor Products>Diodes - Rectifiers - Single
  • Capacitance: 150pF @ 4V, 1MHz
  • Operating Temperature: -50°C ~ 150°C
  • ROHS3 Compliant: Yes
