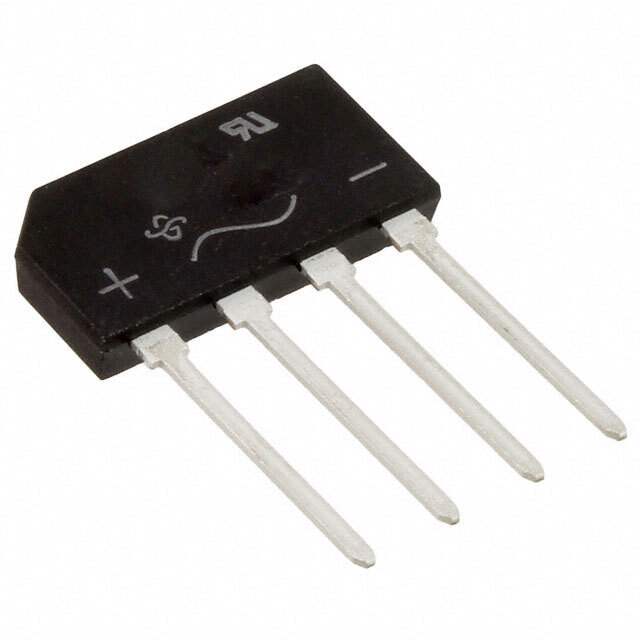

GBL06-E3/45 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 4A
Current - Reverse Leakage @ Vr 5μA @ 600V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package GBL
Win Source Part Number 129205-GBL06-E3/45
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian GBL06-E3/45 CAD Model

Description

The Vishay 129205-GBL06-E3/45 is a single-phase standard technology diode.

  • Peak Reverse Voltage: 600V
  • Maximum Forward Voltage: 1.1V @ 4A
  • Reverse Leakage Current: 5μA @ 600V
  • Mounting Type: Through Hole
  • Supply and Demand: Limited
