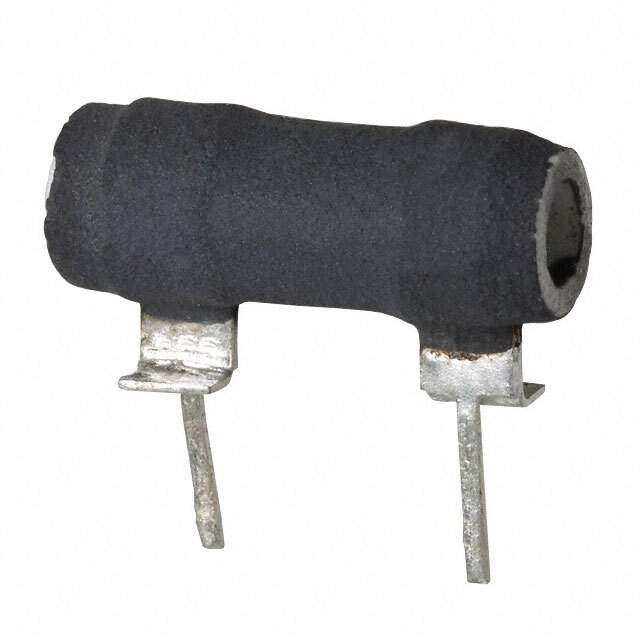

Same model may have multiple batches, images only for reference.

FS-020CBE25R00JE

Name: FS-020CBE25R00JE
Brand: Vishay
SKU: 774768
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	FS-020CBE25R00JE
Manufacturer	Vishay
Catalog	Through Hole Resistors
Description	RES 25 OHM 20W 5% WW RAD / Wirewound Resistors, Industrial Power, Silicone Coated, Printed Circuit Board Through Hole Mount
Datasheet	FS-020CBE25R00JE Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Resistors
Manufacturer	Vishay Huntington Electric Inc.
Series	FS
Packaging	Bulk
Resistance (Ohms)	25
Tolerance	±5%
Power (Watts)	20W
Composition	Wirewound
Temperature Coefficient	±260ppm/°C
Operating Temperature Range	-55°C ~ 350°C
Package	Radial
Dimension	0.437" Dia x 2.000" L (11.11mm x 50.80mm)
Height - Seated (Maximum)	0.725" (18.41mm)
Number of Terminations	2
Win Source Part Number	774768-FS-020CBE25R00JE
Popularity	Medium
Supply and Demand Status	Limited
ECCN	EAR99
Country of Origin	United States of America
Ultra Librarian 3D Model	Ultra Librarian FS-020CBE25R00JE CAD Model

Alternative Products

Description

The Vishay Huntington Electric Inc. FS series resistor is a wirewound type.

Power Rating: 20W
Resistance Value: 25 ohms
Tolerance: ±5%
Temperature Coefficient: ±260ppm/°C
Operating Temperature Range: -55°C to 350°C
Packaging: Bulk
Package Dimensions: 0.437” Dia x 2.000” L (11.11mm x 50.80mm)
Terminations: Two
Applications: High-temperature resistance
Country of Origin: United States of America
Compliance: EAR99
