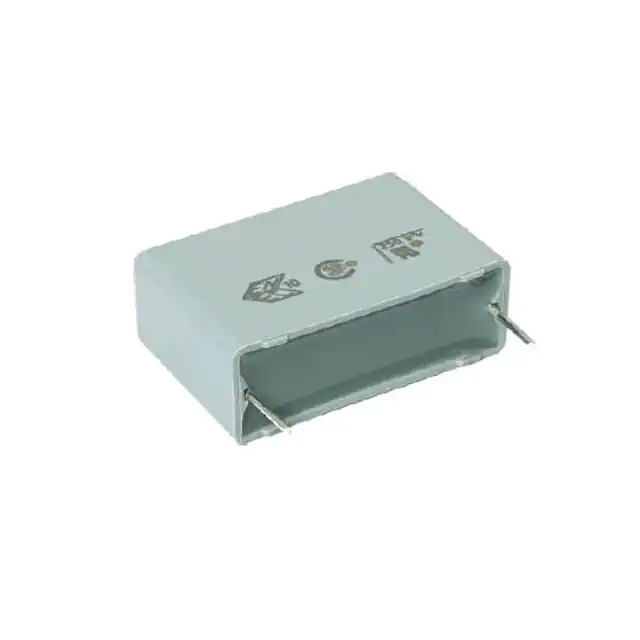

Same model may have multiple batches, images only for reference.
F17725222000 Vishay
Same model may have multiple batches, images only for reference.

F17725222000

Part No F17725222000
Manufacturer Vishay
Catalog Film Capacitors
Description CAP FILM 2.2UF 10% 630VDC RADIAL / 2.2 µF Film Capacitor 310V 630V Polyester, Metallized Radial
Datasheet
F17725222000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series F1772
Package Bulk
Product Status Active
Capacitance 2.2 µF
Tolerance ±10%
Voltage Rating - AC 310V
Voltage Rating - DC 630V
Dielectric Material Polyester, Metallized
Temperature Range - Operating -40°C ~ 110°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 1.634" L x 0.709" W (41.50mm x 18.00mm)
Height - Seated (Max) 1.280" (32.50mm)
Termination PC Pins
Lead Spacing 1.476" (37.50mm)
Applications EMI, RFI Suppression
Ratings X2
Features -
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0060
Win Source Part Number 1360585-F17725222000
Ultra Librarian 3D Model Ultra Librarian F17725222000 CAD Model

Description

The F17725222000 is a film capacitor designed for use in electronic circuits. F17725222000 is part of the Vishay Beyschlag/Draloric/BC Components F1772 series.

  • Series: F1772
  • Package: Radial
  • Operating Temperature Range: -40°C to 110°C
  • Capacitance: 2.2µF
  • Tolerance: ±10%
  • Voltage Rating: 310V (AC) and 630V (DC)
  • Size: 1.634" L x 0.709" W (41.50mm x 18.00mm)
  • Height: 1.280" (32.50mm)
  • Application: EMI and RFI Suppression
