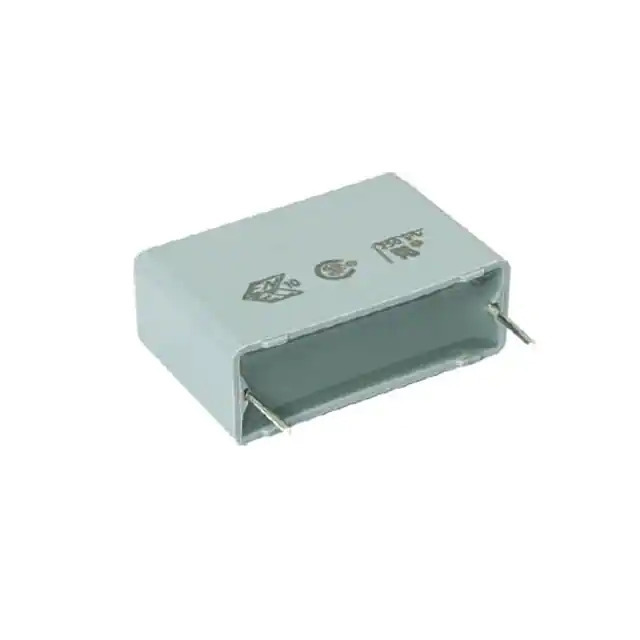

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series F1772
Package Bulk
Product Status Active
Capacitance 0.68 µF
Tolerance ±10%
Voltage Rating - AC 310V
Voltage Rating - DC 630V
Dielectric Material Polyester, Metallized
Temperature Range - Operating -40°C ~ 110°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 1.220" L x 0.512" W (31.00mm x 13.00mm)
Height - Seated (Max) 0.906" (23.00mm)
Termination PC Pins
Lead Spacing 1.083" (27.50mm)
Applications EMI, RFI Suppression
Ratings X2
Features -
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0060
Win Source Part Number 1360566-F17724682000
Ultra Librarian 3D Model Ultra Librarian F17724682000 CAD Model

Description

The 1360566-F17724682000 is a film capacitor from Vishay Beyschlag/Draloric/BC Components' F1772 series.

  • Capacitance: 0.68 µF
  • Tolerance: ±10%
  • Voltage - Rated: 310V AC
  • Voltage - Rated: 630V DC
  • Mounting Type: Through Hole
  • Package / Case: Radial
  • Size / Dimension: 1.220" L x 0.512" W (31.00mm x 13.00mm)
  • Height - Seated (Max): 0.906" (23.00mm)
  • Applications: EMI and RFI Suppression
  • REACH: Unaffected
  • ECCN: EAR99
  • Status: Active
