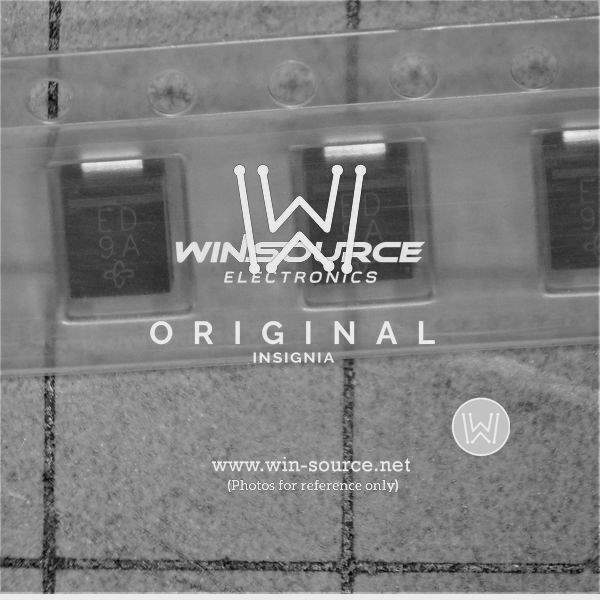

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 200V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 900mV @ 2A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 30ns
Current - Reverse Leakage @ Vr 10μA @ 200V
Capacitance @ Vr, F 18pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package DO-214AA (SMB)
Operating Temperature - Junction -55°C to 150°C
Win Source Part Number 015661-ES2D-E3/52T
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name ES2D
Introduction Date February 11, 1999
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian ES2D-E3/52T CAD Model

Description

Overview

The ES2D-E3/52T is a superior fast rectifier diode specifically engineered to handle high-performance power requirements with minimal power loss and excellent electrical characteristics.

Applications

  • Renewable Energy Systems
  • Electric Vehicle Chargers
  • Home Appliance Control Systems
  • Surge Protection Devices

Features & Benefits

  • High-speed switching with minimal reverse recovery time for reduced energy loss
  • Excellent thermal management for enhanced durability under high power conditions
  • Comprehensive 500V voltage rating supports wide-ranging applications
  • Suitable for both commercial and industrial power solutions

Additional Details

With a forward current capacity of 2A, the ES2D-E3/52T is engineered to optimize performance in systems with demanding power conditions.
