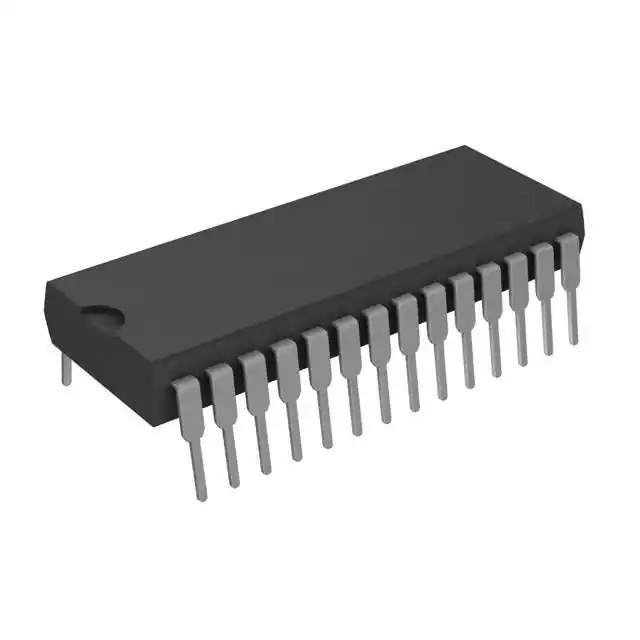

DG406BDJ Real Image
Same model may have multiple batches, images only for reference.

DG406BDJ

Part No DG406BDJ
Manufacturer Vishay
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description IC MUX 16:1 60OHM 28DIP
Datasheet
DG406BDJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Interface - Analog Switches, Multiplexers, Demultiplexers
Mfr Vishay
Package Tube
Product Status Obsolete
Number of Circuits 1
On-State Resistance (Max) 60Ohm
Channel-to-Channel Matching (ΔRon) 3Ohm
Voltage - Supply, Single (V+) 7.5V ~ 44V
Voltage - Supply, Dual (V±) ±5V ~ 20V
Switch Time (Ton, Toff) (Max) 107ns, 88ns
Charge Injection 11pC
Channel Capacitance (CS(off), CD(off)) 6pF, 108pF
Current - Leakage (IS(off)) (Max) 500pA
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Through Hole
Package / Case 28-DIP (0.600", 15.24mm)
Supplier Device Package 28-PDIP
Base Product Number DG406
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 584776-DG406BDJ
Ultra Librarian 3D Model Ultra Librarian DG406BDJ CAD Model

Description

The DG406BDJ is a single-channel analog switch that is commonly used in interface applications.

  • On-State Resistance: 60Ohm
  • Supply Voltage (Single): 7.5V to 44V
  • Supply Voltage (Dual): ±5V to ±20V
  • Switch Time (Turn-On): 107ns
  • Switch Time (Turn-Off): 88ns
  • Package: 28-DIP
  • Mounting: Through-Hole
  • Applications: Audio and video signal routing, data acquisition systems, and communication interfaces
