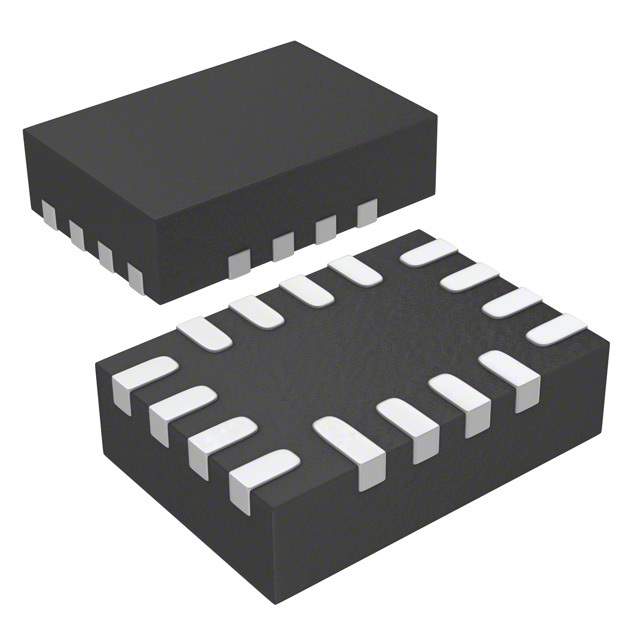

DG4053AEN-T1-E4 Real Image
Same model may have multiple batches, images only for reference.

DG4053AEN-T1-E4

Part No DG4053AEN-T1-E4
Manufacturer Vishay
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description 8-Channel, Dual 4-Channel, Triple 2-Channel Multiplexers, with 0.5 pC Charge Injection
Datasheet
DG4053AEN-T1-E4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Vishay
Packaging Reel - TR
Part Status Obsolete(EOL)
Switch Circuit SPDT
Number of Circuits 3
On-State Resistance (Maximum) 100 Ohm
Channel-to-Channel Matching (ΔRon) 3 Ohm
Operating Supply Voltage 2.7 V ~ 12 V
Dual Voltage Supply ±2.5 V ~ 5 V
Switch Time (Ton, Toff) (Maximum) 108ns, 92ns
-3db Bandwidth 730MHz
Charge Injection 0.25pC
Channel Capacitance (CS(off), CD(off)) 3pF, 4pF
Current - Leakage (IS(off)) (Maximum) 1nA
Crosstalk -67dB @ 10MHz
Operating Temperature Range -40°C ~ 125°C (TA)
Package 16-WFQFN
Manufacturer Package 16-miniQFN (1.8x2.6)
Win Source Part Number 1167458-DG4053AEN-T1-E4
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Limited
Family Name DG4053A
Introduction Date April 27, 2008
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian DG4053AEN-T1-E4 CAD Model

Description

The Vishay DG4053AEN-T1-E4 is a 16-miniQFN (1.8x2.6) package with 3 circuits.

  • Circuit: SPDT switch
  • Maximum On-State Resistance: 100 Ohm
  • Operating Supply Voltage: 2.7 V to 12 V
  • -3db Bandwidth: 730MHz
  • Charge Injection: 0.25pC
  • Crosstalk: -67dB @ 10MHz
  • Channel-to-Channel Matching (ΔRon): 3 Ohm
  • Channel Capacitance (CS(off), CD(off)): 3pF, 4pF
  • Status: obsolete(EOL)
  • Family: DG4053A
  • ECCN: EAR99
  • Supply and demand status: limited
