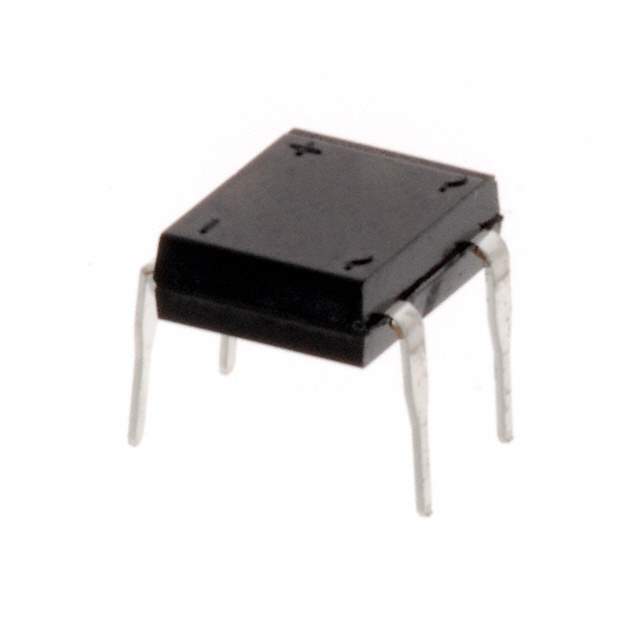

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 51 Weeks
Features Bridge Rectifier Single Phase Standard 200 V Through Hole DFM
Manufacturer Vishay
Package Tube
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Through Hole
Package 4-EDIP (0.300", 7.62mm)
Case / Package DFM
Family Name DF02
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number DF02ME345, DF02M-E3/45GI, DF02M-E3/45-ND
Quantity per package 50
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 868355-DF02M-E3/45
Ultra Librarian 3D Model Ultra Librarian DF02M-E3/45 CAD Model

Description

The Vishay DF02M-E3/45 is a bridge rectifier that is designed for use in single-phase circuits.

  • Voltage Rating: 200V
  • Mounting: Through-hole
  • Package Size: 4-EDIP (0.300", 7.62mm)
  • Family: DF02
  • Supply: Limited
  • Quantity per Package: 50
  • ECCN: EAR99
  • REACH Regulations: Unaffected
  • Estimated Production Lead Time: 51 weeks
  • HTSUS Code: 8541.10.0080
