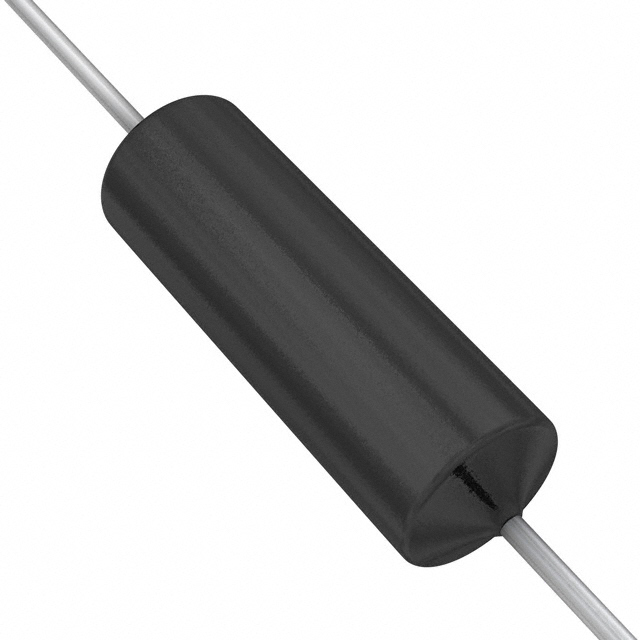

CW00522R00JE12HE Vishay – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

CW00522R00JE12HE

Part No CW00522R00JE12HE
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES 22 OHM 6.5W 5% AXIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Resistance 22 Ohms
Tolerance ±5%
Power (Watts) 6.5W
Composition Wirewound
Temperature Coefficient ±30ppm/°C
Temperature Range - Operating -65°C ~ 350°C
Case / Package Axial
Supplier Device Package Axial
Size / Dimension 0.312" Dia x 0.875" L (7.92mm x 22.22mm)
Number of Terminations 2
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1591445-CW00522R00JE12HE
Ultra Librarian 3D Model Ultra Librarian CW00522R00JE12HE CAD Model
