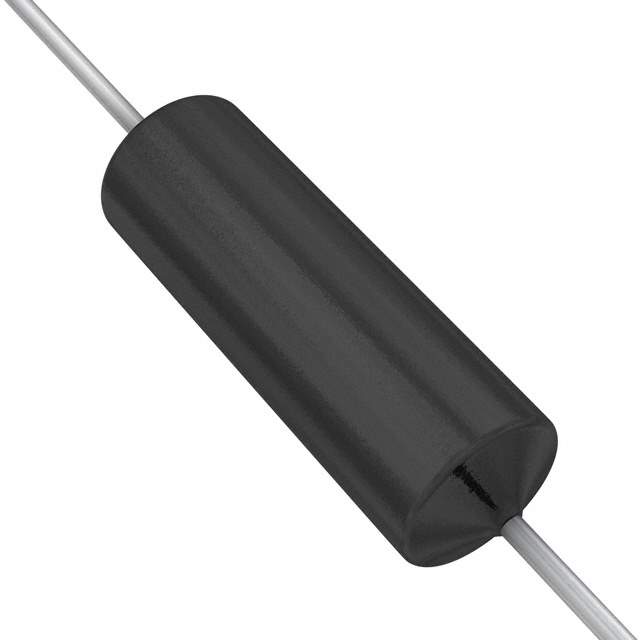

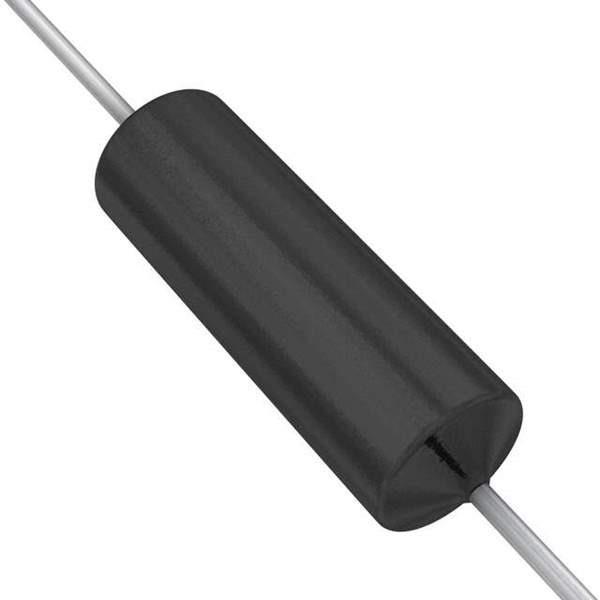

Same model may have multiple batches, images only for reference.

CW00515K00JE12

Name: CW00515K00JE12
Brand: Vishay
SKU: 1053741
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CW00515K00JE12
Manufacturer	Vishay
Catalog	Through Hole Resistors
Description	Res Wirewound 15K Ohm 5% 16W ±30ppm/C Aluminum Housed AXL Flange Mount Loose/Tray
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Mounting	SMD (SMT)
Case / Package	Ceramic
Composition	Wirewound
Contact Plating	Tin
Diameter	7.92 mm
Lead Diameter	813 µm
Length	22.22 mm
Maximum Operating Temperature	250 °C
Min Operating Temperature	-65 °C
Number of Pins	2
Packaging	Bulk
Power Rating	5 W
REACH SVHC	Unknown
Resistance	15 kΩ
RoHS	Compliant
Schedule B	8533210080, 8533210080
Temperature Coefficient	30 ppm/°C
Termination	Axial
Tolerance	5 %
Voltage Rating	274 V
Win Source Part Number	1053741-CW00515K00JE12
Categories	Through Hole Resistors
Manufacturer	Vishay
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian CW00515K00JE12 CAD Model

Alternative Products

Description

The Vishay CW00515K00JE12 is a ceramic through-hole resistor with a resistance of 15 kΩ and a power rating of 5 W. It has a tolerance of 5% and a temperature coefficient of 30 ppm/°C. The component is designed for surface mount applications and has a maximum operating temperature of 250 °C. The package is bulk and has an axial termination. The CW00515K00JE12 is a reliable and efficient choice for your electronic circuit needs.
