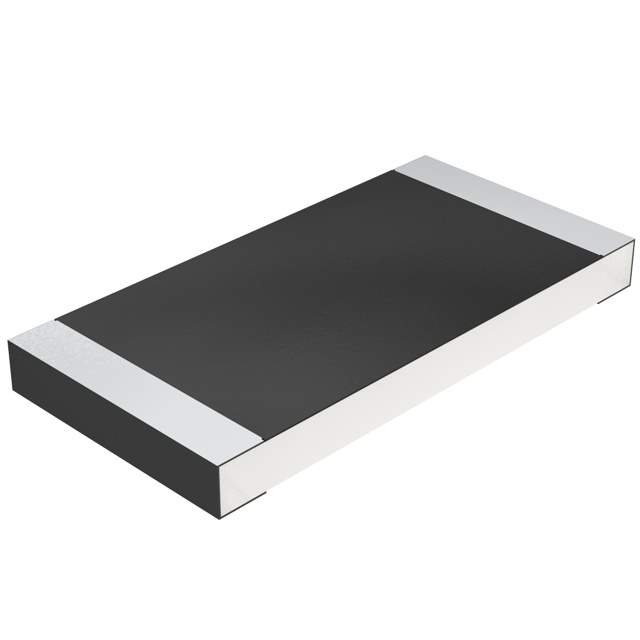

The CRCW2512471JR67 is a thick film chip resistor manufactured by Vishay. It is designed for surface mount applications requiring high power dissipation and stable resistance. The resistor utilizes a metal glaze thick film resistive element on a ceramic substrate, offering reliable performance under various operating conditions.

Applications

• Power supplies
• High-power circuits
• Current sensing
• Voltage dividers in high-power applications
• Industrial equipment

Features

• Surface mount technology (SMT)
• Thick film resistive element
• High power rating
• Stable performance
• RoHS compliant

Benefits

• Handles higher power dissipation compared to smaller chip resistors.
• Provides consistent resistance over a wide temperature range.
• Suitable for automated assembly processes, reducing manufacturing costs.
• Offers a reliable solution for high-power resistance requirements.
• Complies with environmental regulations, minimizing environmental impact.

Additional Details

The CRCW2512471JR67 has a resistance value of 470 ohms. The 2512 package size indicates a larger footprint, enabling higher power dissipation. The Vishay CRCW series is known for its robust construction and stable performance. The resistor's tolerance and temperature coefficient are important factors to consider during circuit design. Applications include power management circuits, current limiting in LED drivers, and voltage dividers in high-power amplifiers.
