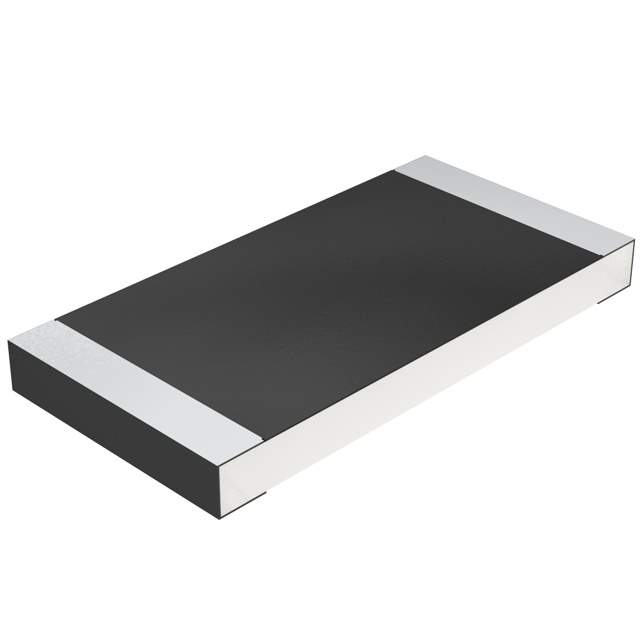

The CRCW2512470KFKEG is a thick film chip resistor from Vishay's CRCW series. It is designed for general purpose applications, offering a stable and reliable resistive element in a surface-mount package.

Applications

• Current sensing
• Voltage division
• Pull-up and pull-down resistor applications
• Load resistor applications
• General electronics circuits

Features

• High power rating: 1 W
• Resistance value: 470 kΩ
• Tolerance: ±1 %
• Temperature coefficient: ±100 ppm/°C
• Package: 2512 (6432 metric)
• Termination: Thick film
• RoHS compliant

Benefits

• Provides a stable and precise resistance value for accurate circuit performance.
• High power rating enables it to handle higher currents and power dissipation.
• Small size allows for high-density board designs.
• RoHS compliance ensures environmental friendliness.
• Excellent long-term stability under various environmental conditions.

Additional Details

The CRCW2512 series resistors are constructed using a high-quality ceramic substrate and a thick film resistive element. The resistive element is passivated to protect it from environmental factors and ensure long-term stability. The terminations are made of a solderable material for easy mounting on printed circuit boards. The 2512 package size refers to the dimensions of the resistor, with a length of 0.25 inches and a width of 0.12 inches. This resistor is suitable for a wide range of electronic applications where a precise and stable resistance value is required. The operating temperature ranges from -55°C to +155°C. This resistor offers excellent pulse load capability and is well-suited for demanding applications.
