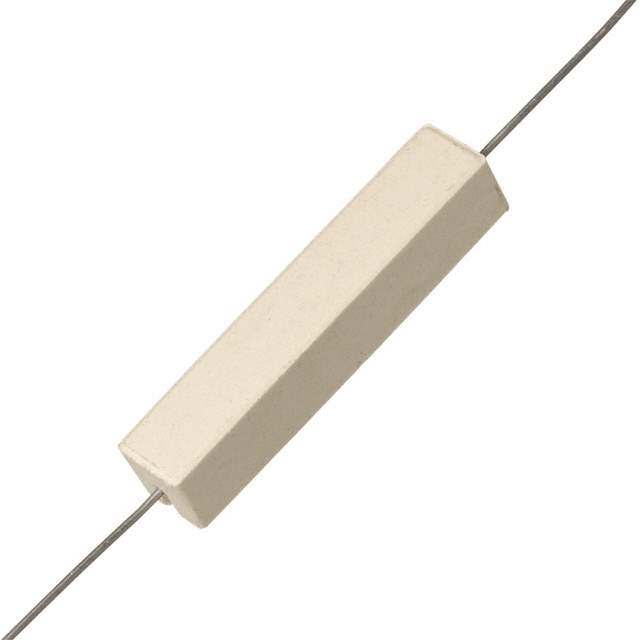

Same model may have multiple batches, images only for reference.

CPW20200R0JB14

Name: CPW20200R0JB14
Brand: Vishay
SKU: 1053019
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CPW20200R0JB14
Manufacturer	Vishay
Catalog	Through Hole Resistors
Description	RES 200 OHM 20W 5% AXIAL / 200 Ohms ±5% 20W Through Hole Resistor Axial Flame Proof, Pulse Withstanding, Safety Wirewound
Datasheet	CPW20200R0JB14 Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Through Hole Resistors
Mfr	Vishay Dale
Series	CPW
Package	Bulk
Resistance	200 Ohms
Tolerance	±5%
Power (Watts)	20W
Composition	Wirewound
Features	Flame Proof, Pulse Withstanding, Safety
Temperature Coefficient	±30ppm/°C
Temperature Range - Operating	-65°C ~ 275°C
Package / Case	Axial
Supplier Device Package	Axial
Dimension	2.500" L x 0.500" W (63.50mm x 12.70mm)
Number of Terminations	2
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8533.21.0080
Standard Package	1
Win Source Part Number	1053019-CPW20200R0JB14
Ultra Librarian 3D Model	Ultra Librarian CPW20200R0JB14 CAD Model

Description

The Vishay Dale CPW20200R0JB14 is a high-quality wirewound resistor that is designed for use in a range of electronic applications.

Power: 20W
Design: Flame-proof, pulse-withstanding, and safety design
Tolerance: ±5%
Temperature Coefficient: ±30ppm/°C
Mounting: Through-hole
