Same model may have multiple batches, images only for reference.

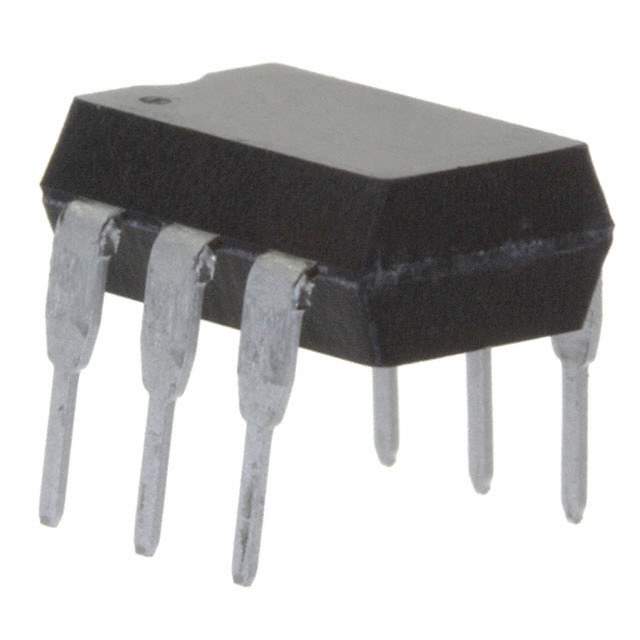

CNY75B Real Image
Same model may have multiple batches, images only for reference.

CNY75B

Part No CNY75B
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5KV TRANS W/BASE 6DIP
Datasheet
CNY75B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 100% @ 10mA
Maximum DC Current Transfer Ratio 200% @ 10mA
Switching Turn-On and Turn-Off Time 5.5μs, 4μs
Rise and Fall Time 3μs, 3.7μs
Input Type DC
Maximum Output Voltage 70V
Channel Output Current 50mA
Forward Voltage 1.25V
Continuous forward current- Max 60mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C to 110°C
Mounting Through Hole
Case / Package 6-DIP
Win Source Part Number 084134-CNY75B
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CNY75B CAD Model

Description

CNY75B Optoisolator

The CNY75B is a standard optoisolator providing electrical isolation between input and output signals, commonly used in signal communication and processing applications.

  • Applications:
    • Microprocessor System Isolation
    • Switchmode Power Supplies
    • Interface Between High and Low Voltage Circuits
    • Automation and Security Systems
  • Features and Benefits:
    • High Insulation Resistance for Enhanced Safety
    • Wide Operating Temperature Range
    • Resistant to EMI/RFI Interference
    • Compact Design for Integration Convenience
  • Additional Details: The CNY75B offers a sustainable solution being lead-free and conforming to environmental protection protocols.
