CNY17F-1X007T Vishay
Same model may have multiple batches, images only for reference.

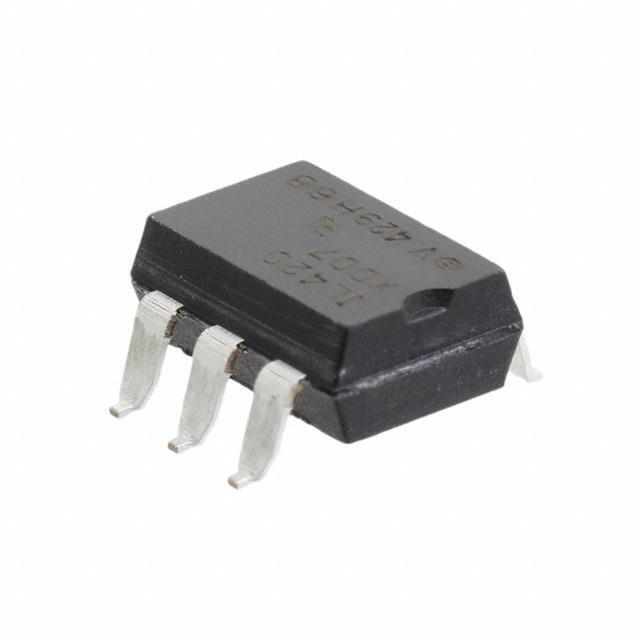

CNY17F-1X007T

Part No CNY17F-1X007T
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLTR 5KV TRANSISTOR 6-SMD / Optocoupler DC-IN 1-CH Transistor DC-OUT 6-Pin PDIP SMD T/R
Datasheet
CNY17F-1X007T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay Semiconductor Opto Division
Packaging Reel package
Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Minimum) 40% @ 10mA
Current Transfer Ratio (Maximum) 80% @ 10mA
Turn On / Turn Off Time (Typ) 3μs, 2.3μs
Rise / Fall Time (Typ) 2μs, 2μs
Input Type DC
Output Type Transistor
Output Voltage MAX 70V
Output Current per Channel 50mA
Voltage - Forward (Vf) (Typ) 1.39V
Current - DC Forward (If) (Maximum) 60mA
Vce Saturation (Maximum) 400mV
Operating Temperature Range -55°C ~ 110°C
Mounting SMD
Package 6-SMD, Gull Wing
Manufacturer Package 6-SMD
Win Source Part Number 771691-CNY17F-1X007T
Popularity Medium
Supply and Demand Status Limited
Family Name CNY17F
Introduction Date September 12, 2001
ECCN EAR99
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian CNY17F-1X007T CAD Model

Description

The CNY17F-1X007T is an optocoupler from Vishay Semiconductor Opto Division.

  • Maximum Output Voltage: 70V
  • Output Current: 50mA per channel
  • Input Type: DC
  • Output Type: Transistor
  • Voltage Isolation: 5000Vrms
  • Rise/Fall Time: 2μs, 2μs
  • Current Transfer Ratio (Minimum): 40% @ 10mA
  • Current Transfer Ratio (Maximum): 80% @ 10mA
  • Package: 6-SMD, Gull Wing
  • Operating Temperature Range: -55°C to 110°C
