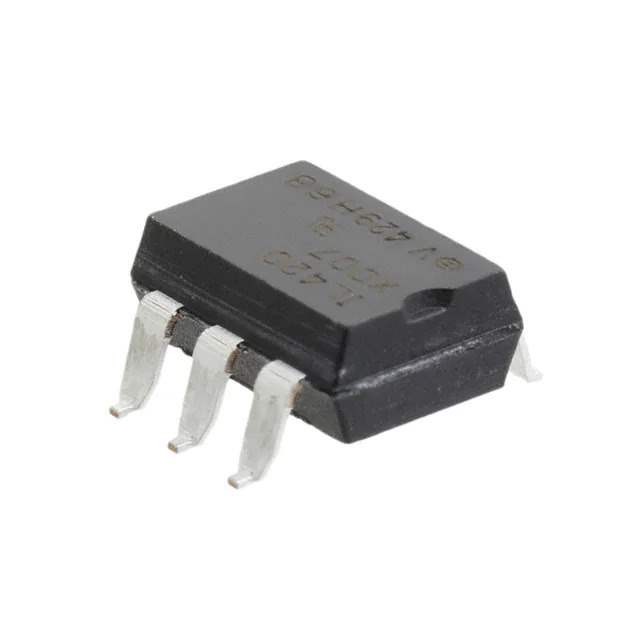

CNY17-3X009 Real Image
Same model may have multiple batches, images only for reference.

CNY17-3X009

Part No CNY17-3X009
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5KV TRANS W/BASE 6SMD / Optoisolator Transistor with Base Output 5000Vrms 1 Channel 6-SMD
Datasheet
CNY17-3X009 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Optoisolators - Transistor, Photovoltaic Output Optoisolators
Mfr Vishay
Package Tube
Product Status Active
Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Min) 100% @ 10mA
Current Transfer Ratio (Max) 200% @ 10mA
Turn On / Turn Off Time (Typ) 3µs, 2.3µs
Rise / Fall Time (Typ) 2µs, 2µs
Input Type DC
Output Type Transistor with Base
Voltage - Output (Max) 70V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.39V
Current - DC Forward (If) (Max) 60 mA
Vce Saturation (Max) 400mV
Temperature Range - Operating -55°C ~ 110°C
Mounting Type Surface Mount
Package / Case 6-SMD, Gull Wing
Supplier Device Package 6-SMD
Base Product Number CNY17
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 579942-CNY17-3X009
Ultra Librarian 3D Model Ultra Librarian CNY17-3X009 CAD Model

Description

The CNY17-3X009 is a transistor output optoisolator in a 6-SMD gull wing package.

  • Application: Isolated voltage and current sensing, driving high-power transistors
  • Optocoupler Type: Phototransistor
  • Current Transfer Ratio: 100% @ 10mA
  • Voltage Isolation: 5000Vrms
  • Forward Voltage: 1.39V
  • Forward Current: 60mA
  • Operating Temperature Range: -55°C to 110°C
  • Mounting: Surface mountable
  • Product Status: Active
  • Manufacturer: Vishay
