Same model may have multiple batches, images only for reference.

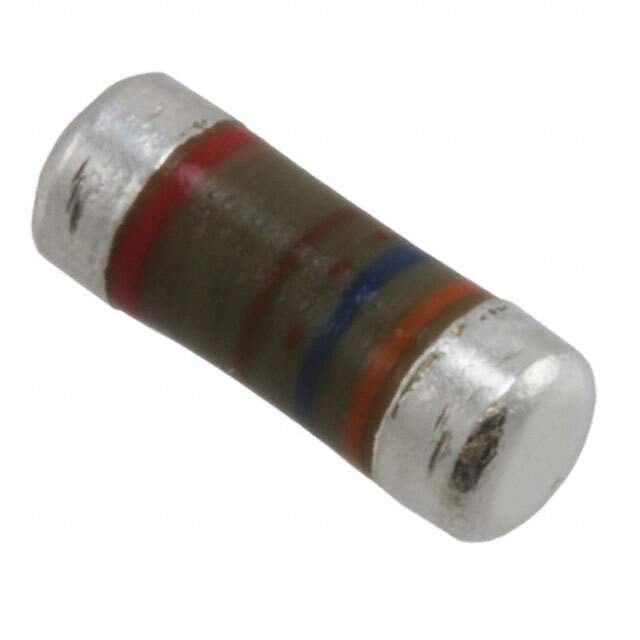

CMB02070X4700GB200 Real Image
Same model may have multiple batches, images only for reference.

CMB02070X4700GB200

Part No CMB02070X4700GB200
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 470 OHM 2% 1W MELF 0207
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Vishay Beyschlag
Packaging Reel
Resistance 470 Ohms
Tolerance ±2%
Power (W) 1W
Composition Carbon Film
Features Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding
Temperature Range - Operating -55°C ~ 155°C
Manufacturer Package MELF, 0207
Supplier Device Package 0207
Parts Dimension 0.087" Dia x 0.228" L (2.20mm x 5.80mm)
Number of Terminations 2
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 759498-CMB02070X4700GB200
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CMB02070X4700GB200 CAD Model

Description

The CMB02070X4700GB200 is a resistor manufactured by Vishay Beyschlag.

  • Win Source Part Number: 759498-CMB02070X4700GB200
  • Features: Anti-sulfur, Automotive AEC-Q200, Pulse Withstanding
  • Tolerance: ±2%
  • Composition: Carbon Film
  • Number of Terminations: 2
  • Resistance: 470 Ohms
  • Supplier Device Package: 0207
  • Operating Temperature Range: -55°C ~ 155°C
  • Manufacturer Package: MELF, 0207
  • Power: 1W
  • Parts Dimension: 0.087" Dia x 0.228" L (2.20mm x 5.80mm)
