Same model may have multiple batches, images only for reference.

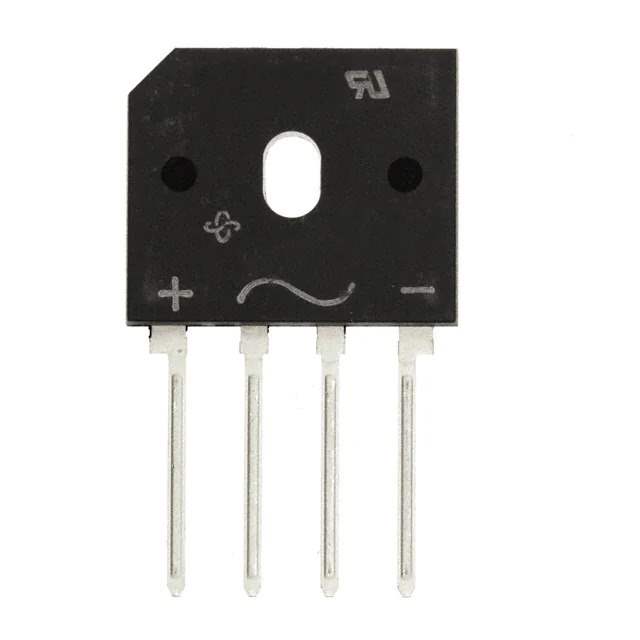

BU1508-E3/45 Real Image
Same model may have multiple batches, images only for reference.

BU1508-E3/45

Part No BU1508-E3/45
Manufacturer Vishay
Catalog Bridge Rectifiers
Description BRIDGE RECT 1P 800V 3.4A BU
Datasheet
BU1508-E3/45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Vishay
Package Tube
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 800 V
Current - Average Rectified (Io) 3.4 A
Voltage - Forward (Vf) (Max) @ If 1.05 V @ 7.5 A
Current - Reverse Leakage @ Vr 5 µA @ 800 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-SIP, BU
Supplier Device Package isoCINK+™ BU
Base Product Number BU1508
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 572971-BU1508-E3/45
Ultra Librarian 3D Model Ultra Librarian BU1508-E3/45 CAD Model

Description

The 572971-BU1508-E3/45 is a bridge rectifier diode from Vishay.

  • Type: Single-phase diode
  • Average Rectified Current: 3.4A
  • Forward Voltage Drop: 1.05V @ 7.5A
  • Reverse Leakage Current: 5 μA @ 800V
  • Voltage Peak Reverse Rating: 800V
  • Mounting: Through-hole
  • Package: 4-SIP (BU)
  • Operating Temperature: -55°C to 150°C
  • Manufacturer: Vishay
  • Market Status: Active
