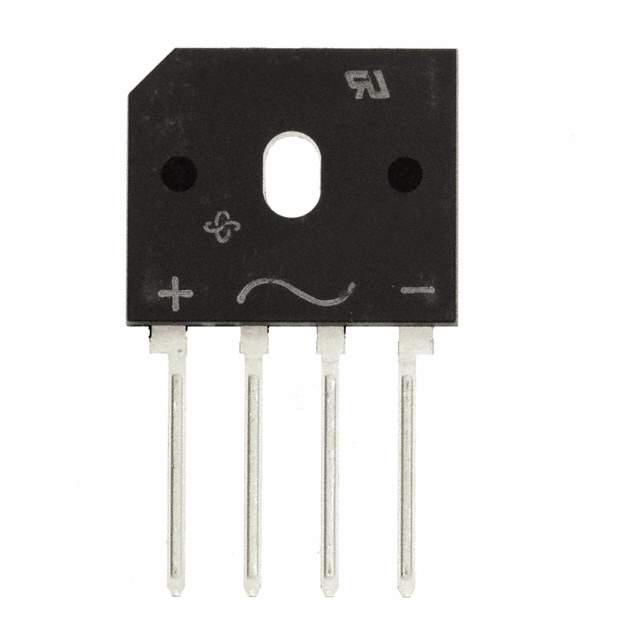

BU1506-E3/45 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Tube
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 600V
Current - Average Rectified (Io) 3.4A
Voltage - Forward (Vf) (Maximum) @ If 1.05V @ 7.5A
Current - Reverse Leakage @ Vr 5μA @ 600V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 4-SIP, BU
Manufacturer Package isoCINK+ BU
Win Source Part Number 1155656-BU1506-E3/45
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Limited
Family Name BU1506
Introduction Date May 06, 2008
ECCN EAR99
Country of Origin China
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian BU1506-E3/45 CAD Model

Description

The BU1506-E3/45 is a single-phase diode manufactured by Vishay Semiconductor Diodes Division. Bold the product name (e.g., BAV99S,135 → BU1506-E3/45) and manufacturer (e.g., Nexperia USA Inc. → Vishay Semiconductor Diodes Division).

  • Diode Type: Single-Phase
  • Package: 4-SIP, BU
  • Current - Average Rectified (Io): 3.4A
  • Voltage - Peak Reverse (Maximum): 600V
  • Voltage - Forward (Vf) (Maximum) @ If: 1.05V @ 7.5A
