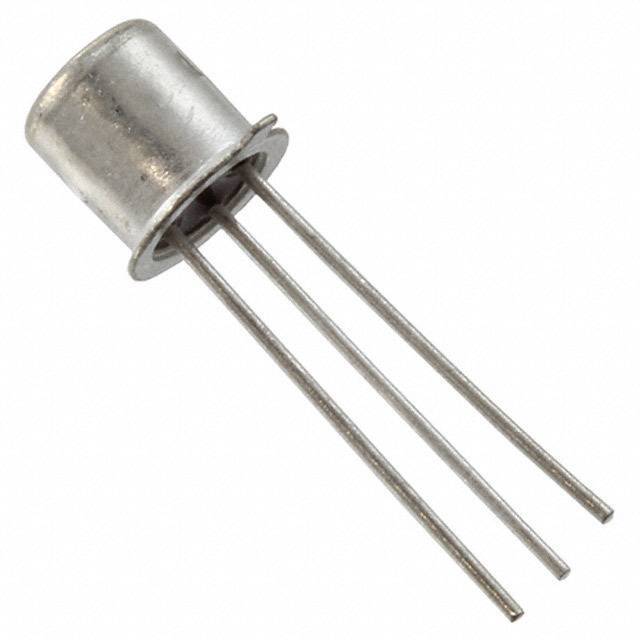

2N4392 Central Semiconductor Corp
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Central Semiconductor Corp
Packaging Bulk
Status Active
Polarity N-Channel
Voltage - Breakdown (V(BR)GSS) 40V
Current - Drain (Idss) @ Vds (Vgs=0) 25mA @ 20V
Voltage - Cutoff (VGS off) @ Id 2V @ 1nA
Max Input Capacitance 14pF @ 20V
Resistance - RDS(On) 60 Ohm
Maximum Power Dissipation 1.8W
Temperature Range - Operating -65°C to 175°C (TJ)
Mounting Through Hole
Case / Package TO-18
Win Source Part Number 005704-2N4392
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2N4392 CAD Model

Description

Product Description

The 2N4392 is a reliable N-channel JFET suitable for both analog and digital electronic applications, designed to deliver consistent efficiency and performance under varying conditions.

Applications and Projects

  • Digital Signal Processing
  • Switching Applications
  • Preamplifier Circuits
  • Instrumentation Amplifiers

Features and Benefits

  • Sustainable performance across digital applications
  • Quick response times for efficient switching operations
  • Versatility in both analog and digital domains

Additional Details

The 2N4392 is versatile for use in mixed-signal circuits, bridging analog and digital technology, thus enhancing the adaptability and response times of complex electronic systems.
