Same model may have multiple batches, images only for reference.

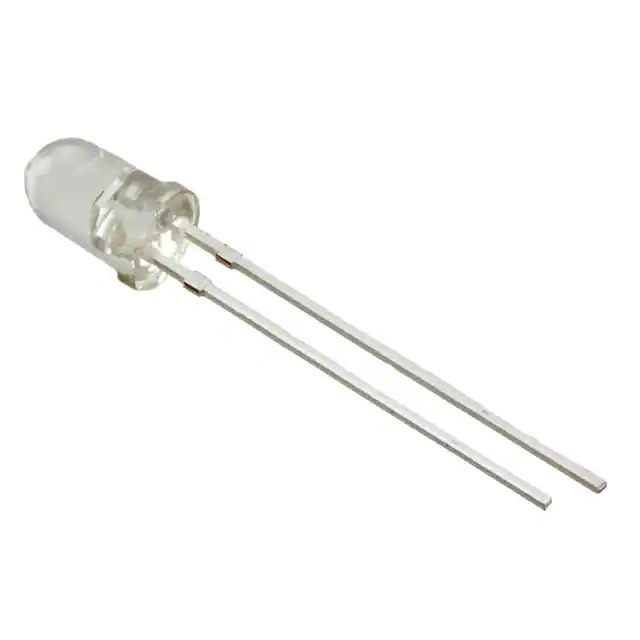

BPW96B Vishay
Same model may have multiple batches, images only for reference.

BPW96B

Part No BPW96B
Manufacturer Vishay
Catalog Optical Sensors - Phototransistors
Description PHOTOTRANSISTOR 450 TO 1080 NM
Datasheet
BPW96B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Phototransistors
Mfr Vishay Semiconductor Opto Division
Series -
Package Bulk
Product Status Active
Voltage - Collector Emitter Breakdown (Max) 70 V
Current - Collector (Ic) (Max) 50 mA
Current - Dark (Id) (Max) 200 nA
Wavelength 850nm
Viewing Angle 40°
Power - Max 150 mW
Mounting Type Through Hole
Orientation Top View
Temperature Range - Operating -40°C ~ 100°C (TA)
Package / Case Radial, 5mm Dia (T 1 3/4)
Base Product Number BPW96
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.7080
Win Source Part Number 1371582-BPW96B
Ultra Librarian 3D Model Ultra Librarian BPW96B CAD Model

Description

The BPW96B is an optical sensor phototransistor designed for various sensing applications.

  • Manufacturer: Vishay Semiconductor Opto Division
  • Operating Temperature: -40°C to 100°C
  • Packaging: Bulk
  • Package: Radial
  • Diameter: 5mm
  • Maximum Collector Current: 50 mA
  • Collector-Emitter Breakdown Voltage: 70 V
  • Power Rating: 150 mW
  • Viewing Angle: 40°
  • Wavelength: 850nm
  • Mounting Type: Through-Hole
