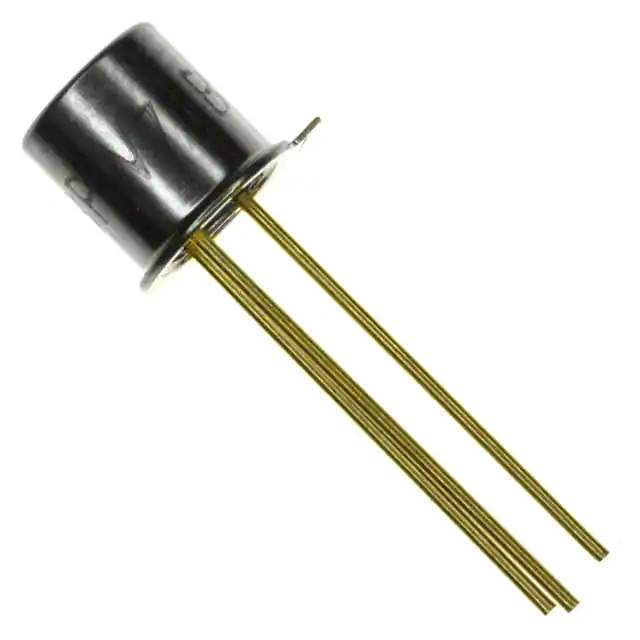

BPW77NA Real Image
Same model may have multiple batches, images only for reference.

BPW77NA

Part No BPW77NA
Manufacturer Vishay
Catalog Optical Sensors - Phototransistors
Description PHOTOTRANSISTOR 450 TO 1080 NM
Datasheet
BPW77NA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Phototransistors
Mfr Vishay
Package Bulk
Product Status Active
Voltage - Collector Emitter Breakdown (Max) 70 V
Current - Collector (Ic) (Max) 50 mA
Current - Dark (Id) (Max) 100 nA
Wavelength 850nm
Viewing Angle 20°
Power - Max 250 mW
Mounting Type Through Hole
Orientation Top View
Temperature Range - Operating -40°C ~ 125°C (TA)
Package / Case TO-206AA, TO-18-3 Metal Can
Base Product Number BPW77
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.7080
Win Source Part Number 846304-BPW77NA
Ultra Librarian 3D Model Ultra Librarian BPW77NA CAD Model

Description

The Vishay 846304-BPW77NA is an optical sensor phototransistor designed for various applications in the field of sensors and transducers.

  • Orientation: Top View
  • Viewing Angle: 20 degrees
  • Power - Max: 250 mW
  • V(BR)CEO: 70 V
  • Current - Collector (Ic) (Max): 50 mA
  • Wavelength: 850 nm
  • Package Type: TO-206AA, TO-18-3 Metal Can
  • Mounting Type: Through Hole
  • Operating Temperature: -40°C to 125°C
  • Manufacturer: Vishay
  • Product Status: Active
