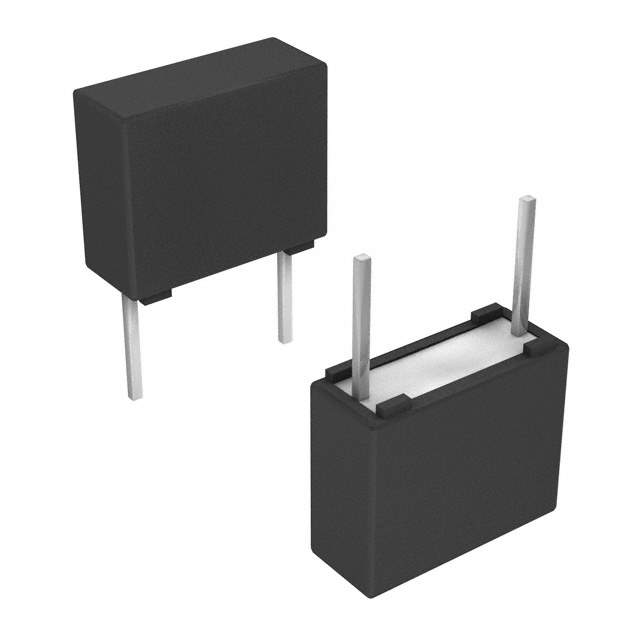

BFC238330153 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series MMKP383
Package Bulk
Capacitance 0.015 µF
Tolerance ±5%
Voltage Rating - AC 350V
Voltage Rating - DC 1000V (1kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Dimension 0.689" L x 0.197" W (17.50mm x 5.00mm)
Height - Seated (Max) 0.433" (11.00mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications High Pulse, DV/DT
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.25.0040
Other Names 2222 383 30153,222238330153,BC1893,BC1893-NDR,BFC2 383 30153,BFC2 383 30153
Standard Package 1,250
Win Source Part Number 1161050-BFC238330153
Ultra Librarian 3D Model Ultra Librarian BFC238330153 CAD Model

Description

The MMKP383 is a film capacitor that belongs to the Capacitors category from Vishay Beyschlag/Draloric/BC Components.

  • Capacitance: 0.015 µF
  • Tolerance: ±5%
  • Dielectric Material: Polypropylene (PP), Metallized
  • Voltage Rating: 350V AC, 1000V DC (1kV)
  • Application: High Pulse and DV/DT
  • Mounting Type: Through Hole
  • Package/Case: Radial
  • Package: Bulk
  • Standard Package: 1,250
  • Lead Spacing: 0.591" (15.00mm)
  • Height Seated: 0.433" (11.00mm)
  • Operating Temperature Range: -55°C to 105°C
