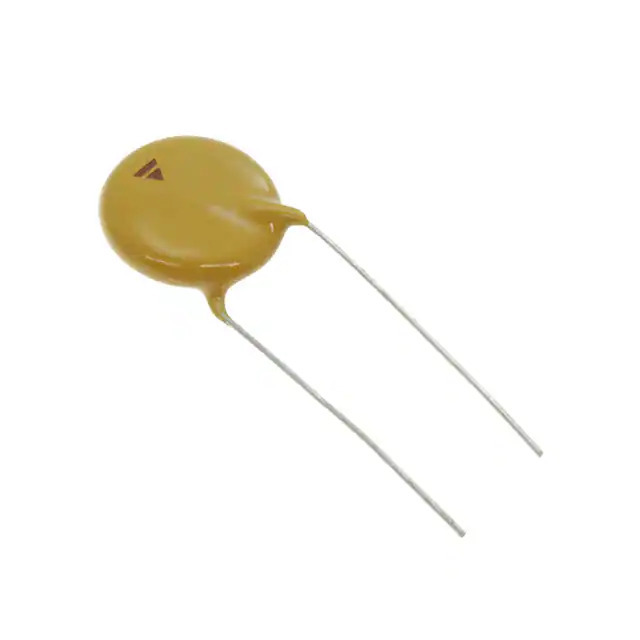

Same model may have multiple batches, images only for reference.
AY1472M65Y5UC63L0 Vishay
Same model may have multiple batches, images only for reference.

AY1472M65Y5UC63L0

Part No AY1472M65Y5UC63L0
Manufacturer Vishay
Catalog Ceramic Capacitors
Description CAP CER 4700PF 760VAC Y5U RADIAL / 4700 pF ±20% 760VAC Ceramic Capacitor Y5U (E) Radial, Disc
Datasheet
AY1472M65Y5UC63L0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series AY1
Package Bulk
Product Status Active
Capacitance 4700 pF
Tolerance ±20%
Voltage - Rated 760VAC
Temperature Coefficient Y5U (E)
Temperature Range - Operating -55°C ~ 125°C
Features Flame Retardant
Ratings AEC-Q200, X1, Y1
Applications Safety, Automotive
Failure Rate -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.650" Dia (16.50mm)
Height - Seated (Max) 0.768" (19.50mm)
Thickness (Max) -
Lead Spacing 0.394" (10.00mm)
Lead Style Straight
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.23.0060
Win Source Part Number 1354877-AY1472M65Y5UC63L0
Ultra Librarian 3D Model Ultra Librarian AY1472M65Y5UC63L0 CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components AY1 series capacitor is a ceramic capacitor with a capacitance of 4700 pF and a voltage rating of 760VAC.

  • Capacitance: 4700 pF
  • Voltage - Rated: 760VAC
  • Tolerance: ±20%
  • Applications: Safety, Automotive
  • Features: Flame Retardant
  • Mounting Type: Through Hole
  • Package / Case: Radial, Disc
  • Lead Spacing: 0.394" (10.00mm)
  • Size / Dimension: 0.650" Dia (16.50mm)
  • Operating Temperature: -55°C ~ 125°C
  • Ratings: AEC-Q200, X1, Y1
  • Series: AY1
  • Packaging: Bulk
  • Temperature Coefficient: Y5U (E)
