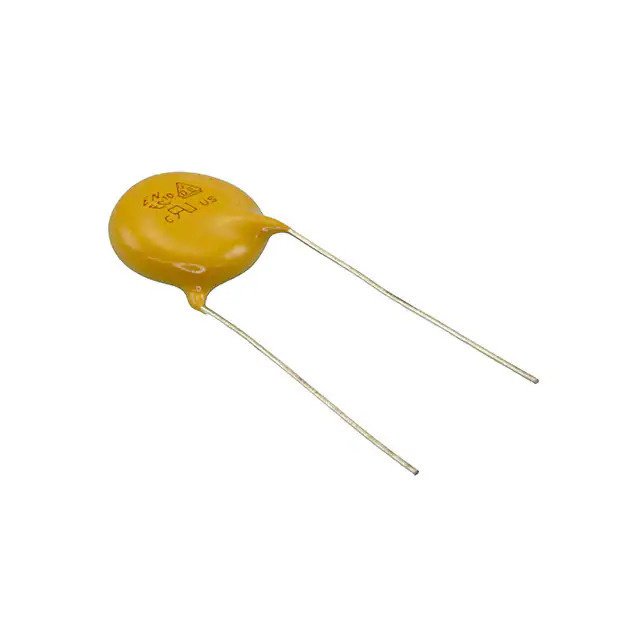

Same model may have multiple batches, images only for reference.

AY1102M37Y5UC63L0

Name: AY1102M37Y5UC63L0
Brand: Vishay
SKU: 1354876
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	AY1102M37Y5UC63L0
Manufacturer	Vishay
Catalog	Ceramic Capacitors
Description	CAP CER 1000PF 760VAC Y5U RADIAL / 1000 pF ±20% 760VAC Ceramic Capacitor Y5U (E) Radial, Disc
Datasheet	AY1102M37Y5UC63L0 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Ceramic Capacitors
Mfr	Vishay Beyschlag/Draloric/BC Components
Series	AY1
Package	Bulk
Product Status	Active
Capacitance	1000 pF
Tolerance	±20%
Voltage - Rated	760VAC
Temperature Coefficient	Y5U (E)
Temperature Range - Operating	-55°C ~ 125°C
Features	Flame Retardant
Ratings	AEC-Q200, X1, Y1
Applications	Safety, Automotive
Failure Rate	-
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.374" Dia (9.50mm)
Height - Seated (Max)	0.492" (12.50mm)
Thickness (Max)	-
Lead Spacing	0.394" (10.00mm)
Lead Style	Straight
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.23.0060
Win Source Part Number	1354876-AY1102M37Y5UC63L0
Ultra Librarian 3D Model	Ultra Librarian AY1102M37Y5UC63L0 CAD Model

Description

The AY1102M37Y5UC63L0 is a ceramic capacitor from the AY1 series manufactured by Vishay Beyschlag/Draloric/BC Components.

Capacitance: 1000 pF
Voltage Rating: 760VAC
Application: Safety, Automotive
AEC-Q200: Yes
Coating: Flame Retardant
Mounting Type: Through Hole
Package: Radial, Disc
Lead Spacing: 0.394" (10.00mm)
Size: 0.374" Dia (9.50mm)
Height - Seated (Max): 0.492" (12.50mm)
Temperature Range: -55°C to 125°C
REACH: Unaffected
Temperature Coefficient: Y5U (E)
ECCN: EAR99
Product Status: Active
