Products specifications

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Bulk
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) (per Diode) 40A
Voltage - Forward (Vf) (Max) @ If 550mV @ 80A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 5mA @ 30V
Operating Temperature - Junction -55°C to 150°C
Mounting Chassis Mount
Case / Package D-61-8
Win Source Part Number 198314-82CNQ030APBF
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 82CNQ030APBF CAD Model

Description

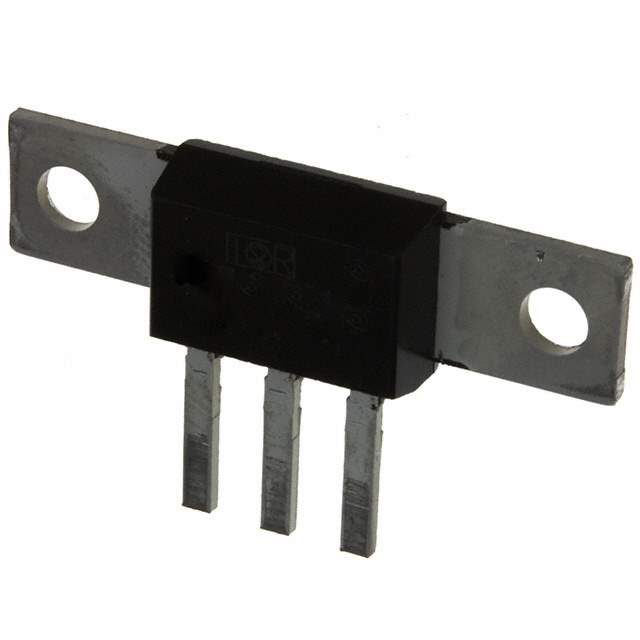

82CNQ030APBF Schottky Rectifier

The 82CNQ030APBF is a high-efficiency Schottky rectifier, designed for applications where a low forward voltage drop is critical. This rectifier is ideal for use in high-frequency inverters, freewheeling, and polarity protection diodes. With solid performance under high temperatures, it guarantees reliability in a wide range of environments.

  • Applications:
    • Switching power supplies
    • Freewheeling diodes
    • Polarity protection
    • High-frequency inverters
  • Features & Benefits:
    • Low forward voltage drop
    • High-frequency operation
    • Robust design for high-temperature performance
    • Enhanced efficiency with minimal power loss
  • Additional Details:
    • Operating junction temperature range: -55°C to +150°C
    • RoHS compliant for environmental safety
