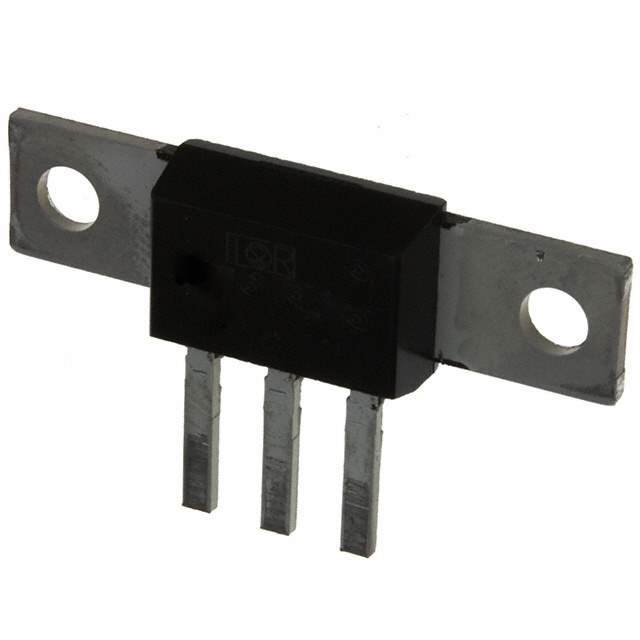

82CNQ030A Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Status Obsolete
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 30V
Current - Average Rectified (Io) (per Diode) 40A
Voltage - Forward (Vf) (Maximum) at If 550mV at 80A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 5mA at 30V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Style Chassis Mount
Manufacturer Package D-61-8
Supplier Device Package D-61-8
Family Part Number 82CNQ030
Manufacturer Pack Quantity 10
MSL Level 1 (Unlimited)
Win Source Part Number 1133933-82CNQ030A
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 82CNQ030A CAD Model

Description

The 82CNQ030A from Vishay Semiconductor Diodes Division is a pair of common cathode Schottky diodes designed for use in various electronic devices.

  • Recovery Speed: 200mA
  • Maximum Reverse Voltage: 30V
  • Package: D-61-8
  • Mounting: chassis mount
