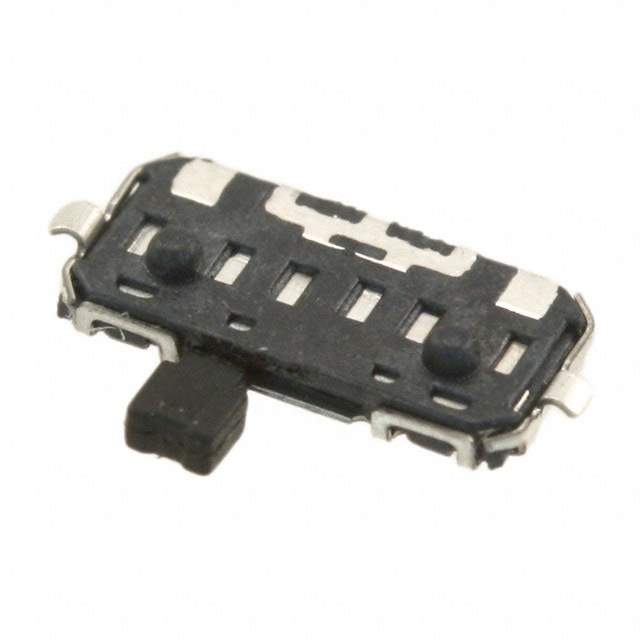

JS102000SAQN Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Estimated Pruduction Lead Time 10 Weeks
Features Slide Switch SPDT Surface Mount, Right Angle
Manufacturer C&K Components
Series JS
Package Reel - TR
Operating Temperature Range -40°C ~ 85°C
Mounting Surface Mount, Right Angle
Family Name JS102000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Other Part Number *JS102000SAQN, 401-2005-1, 401-2005-6, 401-2005, Q5741112GD, 401-2005-ND, 2266-JS102000SAQN, 401-2005-2
Quantity per package 4000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 922425-JS102000SAQN
Ultra Librarian 3D Model Ultra Librarian JS102000SAQN CAD Model

Description

The C&K Components JS102000SAQN is a slide switch with SPDT configuration.

  • Switch Type: Slide Switch
  • Configuration: SPDT
  • Mounting Type: Surface Mount
  • Actuation Direction: Right Angle
  • Operating Temperature: -40°C ~ 85°C
  • Series: JS102000
  • Family Name: JS102000
  • Packaging: Reel - TR
  • Quantity per Package: 4000
  • ECCN: EAR99
  • REACH: Unaffected
  • Supply and Demand Status: Balanced
  • Lead Time: 10 Weeks (Estimated)
