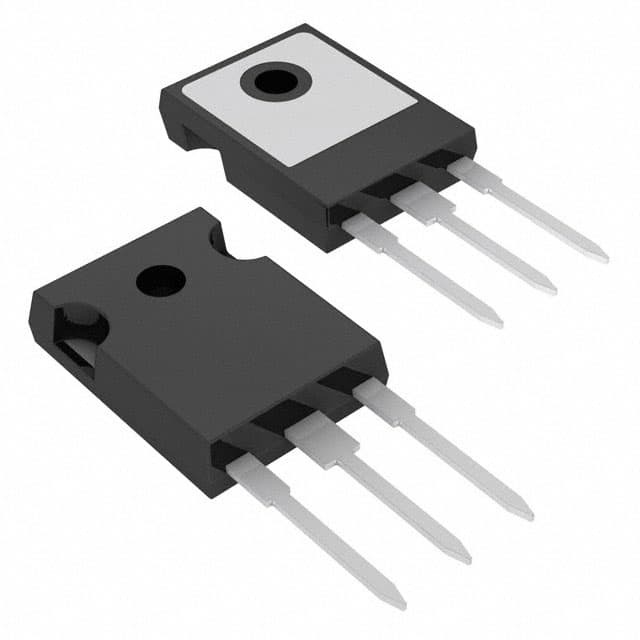

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Vishay
Package Tube
Product Status Obsolete
Technology Standard
Voltage - DC Reverse (Vr) (Max) 200 V
Current - Average Rectified (Io) 60A
Voltage - Forward (Vf) (Max) @ If 1.3 V @ 60 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 180 ns
Current - Reverse Leakage @ Vr 100 µA @ 200 V
Mounting Type Through Hole
Package / Case TO-247-3
Supplier Device Package TO-247AC
Operating Temperature - Junction -40°C ~ 150°C
Base Product Number 60CPF02
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 856828-60CPF02
Ultra Librarian 3D Model Ultra Librarian 60CPF02 CAD Model

Description

The 856828-60CPF02 is a rectifier diode designed for use in discrete semiconductor products. It belongs to the standard technology category and offers fast recovery with a speed of less than 500ns and a current of more than 200mA. With a maximum DC reverse voltage of 200V and an average rectified current of 60A, it provides efficient performance. The maximum forward voltage is 1.3V @ 60A, and the reverse recovery time is 180ns. The reverse leakage current is 100µA @ 200V. This diode is mounted through a hole and comes in a TO-247-3 package. Manufactured by Vishay, this product is now obsolete but still holds value in certain applications.
