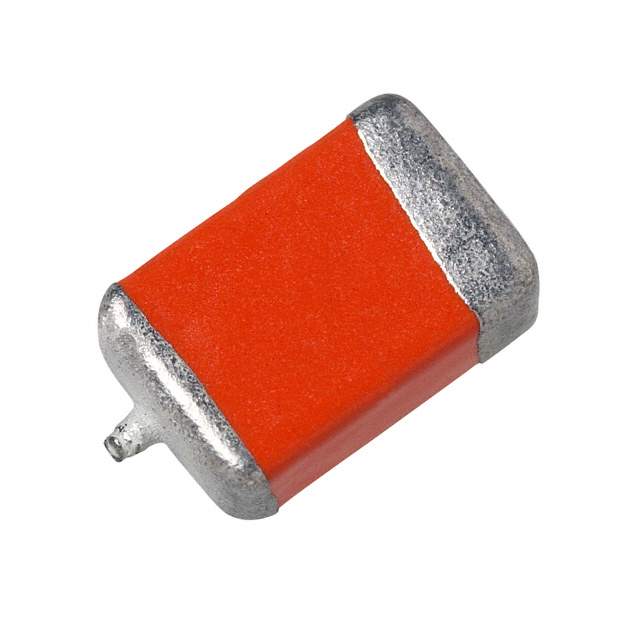

594D156X9025C2T

Part No 594D156X9025C2T
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 15UF 10% 25V 2812 / 15 µF Conformal Coated Tantalum Capacitors 25 V 2812 (7132 Metric) 220mOhm
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Tantalum Capacitors
Mfr Vishay Sprague
Series TANTAMOUNT®, 594D
Package Tape & Reel (TR)
Capacitance 15 µF
Tolerance ±10%
Voltage - Rated 25 V
Type Conformal Coated
ESR (Equivalent Series Resistance) 220mOhm
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 2812 (7132 Metric)
Dimension 0.280" L x 0.126" W (7.10mm x 3.20mm)
Height - Seated (Max) 0.110" (2.79mm)
Manufacturer Size Code C
Features General Purpose
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8532.21.0050
Standard Package 500
Win Source Part Number 1222189-594D156X9025C2T
Ultra Librarian 3D Model Ultra Librarian 594D156X9025C2T CAD Model

Description

The 594D156X9025C2T from Vishay Sprague TANTAMOUNT is a tantalum capacitor that is conformal coated.

  • Capacitance: 15 µF
  • Voltage Rating: 25 V
  • Length: 0.280 inches
  • Width: 0.126 inches
  • Tolerance: ±10 percent
  • ESR: 220mOhm
  • Popularity: Medium
