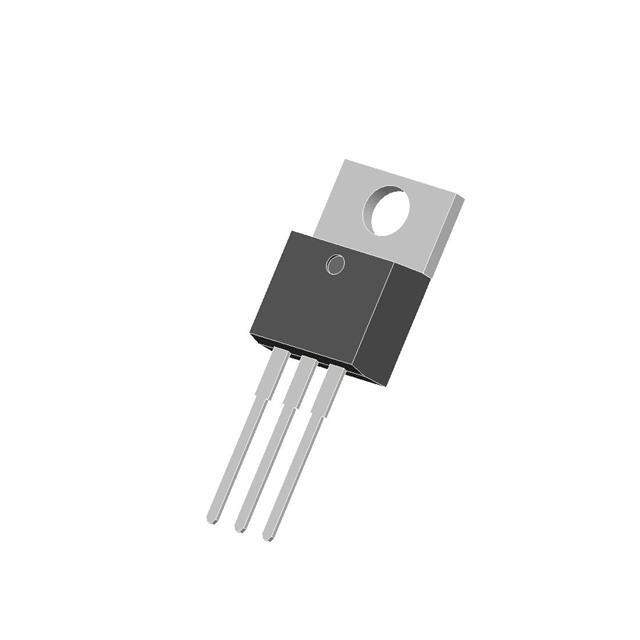

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Tube
Status Obsolete
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 30V
Current - Average Rectified (Io) (per Diode) 20A
Voltage - Forward (Vf) (Maximum) at If 480mV at 20A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 3mA at 30V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Style Through Hole
Manufacturer Package TO-220-3
Supplier Device Package TO-220AB
Family Part Number 42CTQ030
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Win Source Part Number 1128652-42CTQ030
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Power Management, Automotive, Industrial
Ultra Librarian 3D Model Ultra Librarian 42CTQ030 CAD Model

Description

The 42CTQ030, from Vishay Semiconductor Diodes Division, is a Schottky diode with a maximum reverse voltage rating of 30V and an average rectified current of 20A per diode.

  • Forward Voltage: 480mV @ 20A
  • Reverse Leakage Current: 3mA @ 30V
  • Package: TO-220AB
  • Configuration: 1 pair common cathode
  • Temperature Range: -55°C to 150°C
  • Supply and Demand Status: balanced
