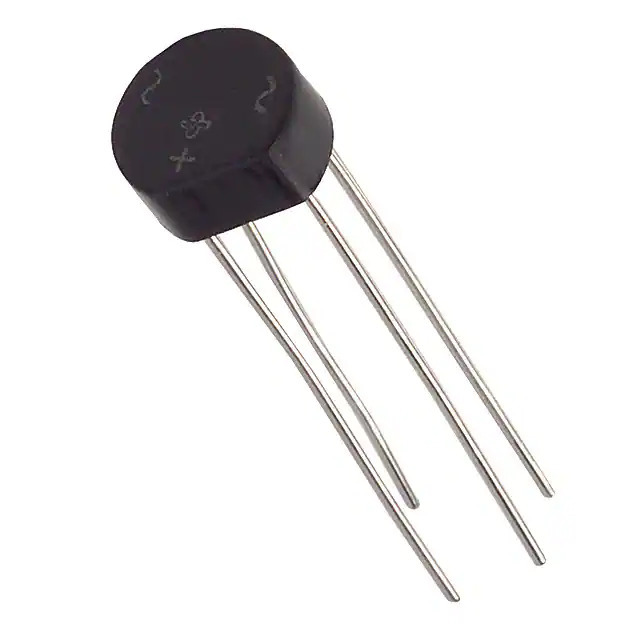

2W08G-E4/51 Vishay
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Vishay General Semiconductor - Diodes Division
Series -
Package Bulk
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 800 V
Current - Average Rectified (Io) 2 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 2 A
Current - Reverse Leakage @ Vr 5 µA @ 800 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-Circular, WOG
Supplier Device Package WOG
Base Product Number 2W08
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1368025-2W08G-E4/51
Ultra Librarian 3D Model Ultra Librarian 2W08G-E4/51 CAD Model

Description

The 2W08G-E4/51 is a bridge rectifier diode from Vishay General Semiconductor - Diodes Division.

  • Average Rectified Current (Io): 2A
  • Forward Voltage (Vf): 1.1V @ 2A
  • Reverse Leakage Current (Id): 5μA @ 800V
  • Temperature Range: -55°C to 150°C
  • Status: Active
  • Series: 2W08
  • Packaging: Bulk
  • Package Type: 4-Circular, WOG
  • Mounting Type: Through Hole
  • REACH: Unaffected
  • ECCN: EAR99
