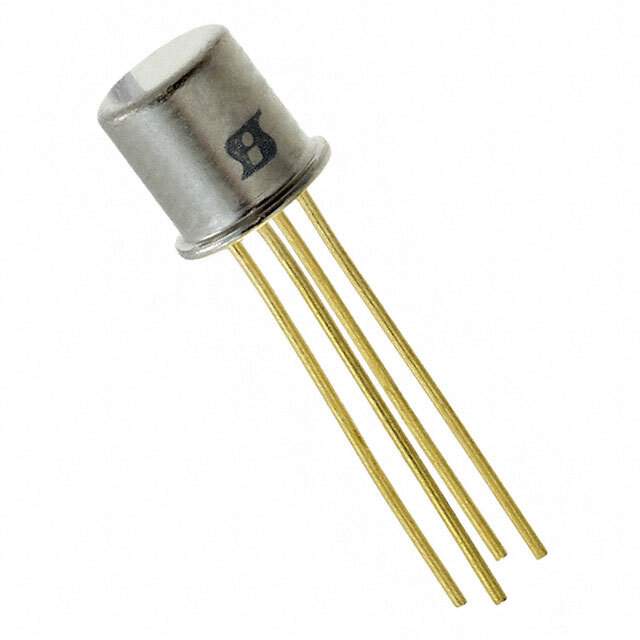

2N4416A-E3 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - JFETs
Manufacturer Vishay Siliconix
Packaging Bulk
Product Status Obsolete
FET Type N-Channel
Voltage - Breakdown (V(BR)GSS) 35 V
Current - Drain (Idss) @ Vds (Vgs=0) 5 mA @ 15 V
Voltage - Cutoff (VGS off) @ Id 2.5 V @ 1 nA
Input Capacitance (Ciss) (Max) @ Vds 4pF @ 15V
Power - Max 300 mW
Temperature Range - Operating -50°C ~ 150°C (TJ)
Mounting Through Hole
Case / Package TO-206AF, TO-72-4 Metal Can
Supplier Device Package TO-206AF (TO-72)
Base Product Number 2N4416
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.21.0095
Standard Package 200
Win Source Part Number 1325399-2N4416A-E3
Ultra Librarian 3D Model Ultra Librarian 2N4416A-E3 CAD Model

Description

The 2N4416A-E3 is a JFET transistor designed for use in various electronic devices.

  • Category: Discrete Semiconductor Products>Transistors - JFETs
  • Packaging: Bulk
  • Standard Package: 200
  • FET Type: N-Channel
  • Maximum Power: 300 mW
  • Voltage Breakdown (V(BR)GSS): 35 V
  • Current Drain (Idss) @ Vds (Vgs=0): 5 mA @ 15 V
  • Voltage Cutoff (VGS off) @ Id: 2.5 V @ 1 nA
  • Supplier Device Package: TO-206AF (TO-72)
  • Input Capacitance (Ciss) (Max) @ Vds: 4pF @ 15V
  • Temperature Range: -50°C ~ 150°C (TJ)
  • Case / Package: TO-206AF, TO-72-4 Metal Can
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8541.21.0095
  • Manufacturer: Vishay Siliconix
  • Base Product Number: 2N4416
  • Product Status: Obsolete
  • ROHS3 Compliant: True
