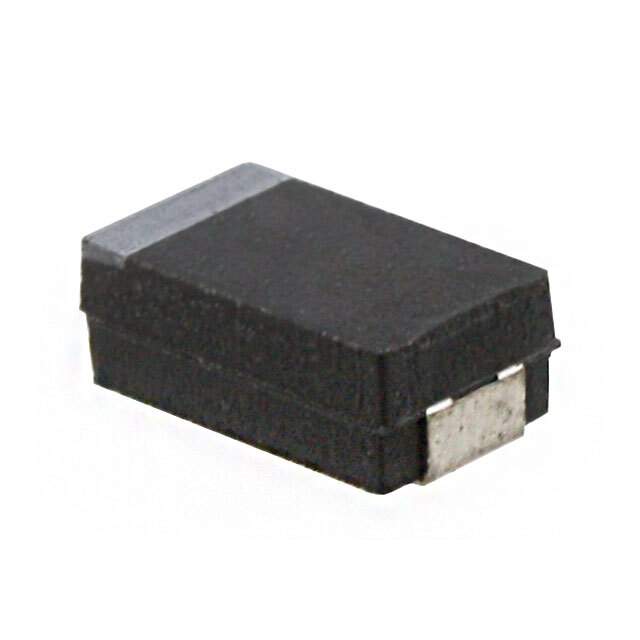

293D226X9016D2TE3 Real Image
Same model may have multiple batches, images only for reference.

293D226X9016D2TE3

Part No 293D226X9016D2TE3
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 22UF 16V 10% 2917
Datasheet
293D226X9016D2TE3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Vishay
Packaging Reel - TR
Status Active
Capacitance 22μF
Tolerance ±10%
Voltage Rating 16V
Type Molded
ESR 800 mOhm
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.122" (3.10mm)
Manufacturer Size Code D
Features General Purpose
Win Source Part Number 1003715-293D226X9016D2TE3
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 293D226X9016D2TE3 CAD Model

Description

The 293D226X9016D2TE3 is a molded capacitor manufactured by Vishay.

  • Voltage Rating: 16V
  • Capacitance: 22μF
  • Tolerance: ±10%
  • ESR: 800 mOhm
  • Component Type: SMD (SMT)
  • Packaging: Reel
  • Temperature Range: -55°C to 125°C
  • Applications: General-Purpose
