Same model may have multiple batches, images only for reference.

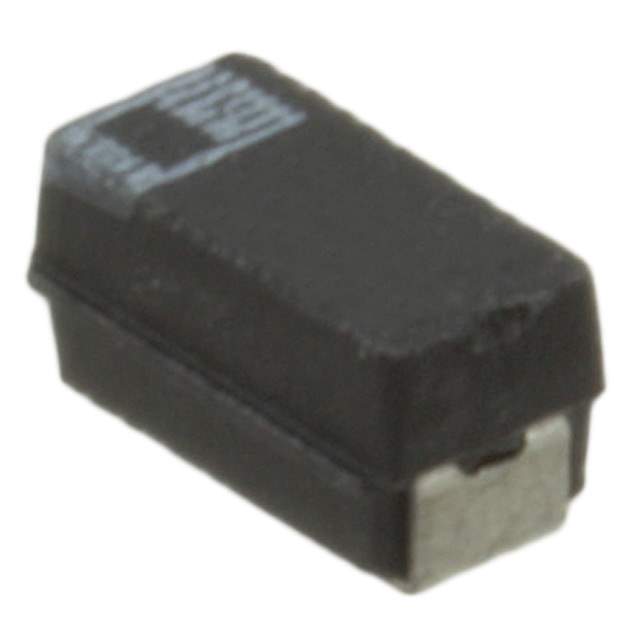

293D226X9004A2TE3 Real Image
Same model may have multiple batches, images only for reference.

293D226X9004A2TE3

Part No 293D226X9004A2TE3
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 22UF 10% 4V 1206 / 22 µF Molded Tantalum Capacitors 4 V 1206 (3216 Metric) 2.9Ohm
Datasheet
293D226X9004A2TE3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Tantalum Capacitors
Mfr Vishay Sprague
Series TANTAMOUNT®, 293D
Package Tape & Reel (TR)
Capacitance 22 µF
Tolerance ±10%
Voltage - Rated 4 V
Type Molded
ESR (Equivalent Series Resistance) 2.9Ohm
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 1206 (3216 Metric)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.071" (1.80mm)
Manufacturer Size Code A
Features General Purpose
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.21.0050
Standard Package 2,000
Win Source Part Number 1036297-293D226X9004A2TE3
Ultra Librarian 3D Model Ultra Librarian 293D226X9004A2TE3 CAD Model

Description

This Vishay Sprague Tantalum capacitor has a capacitance of 22 μF and a voltage rating of 4V.

  • Capacitance: 22 μF
  • Voltage Rating: 4V
  • Tolerance: ±10%
  • ESR: 2.9 Ohm
  • Series: TANTAMOUNT® 293D
  • Packaging: Tape and reel
  • Height: 0.071" (1.80mm)
  • Standard Pack Quantity: 2,000
  • Mounting: SMD (SMT)
  • Temperature Range: -55°C ~ 125°C
  • Manufacturer Size Code: A
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8532.21.0050
