Same model may have multiple batches, images only for reference.

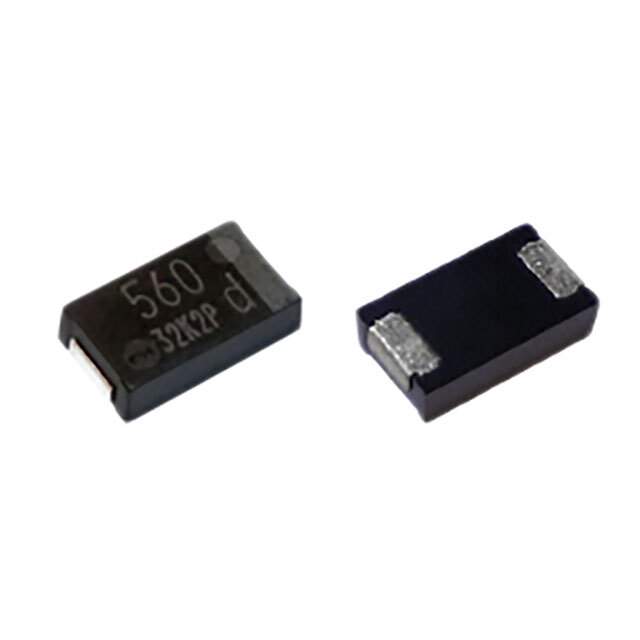

EEF-HX0D561R4 Real Image
Same model may have multiple batches, images only for reference.

EEF-HX0D561R4

Part No EEF-HX0D561R4
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 560UF 20% 2V SMD / 560 µF 2 V Aluminum - Polymer Capacitors 2917 (7343 Metric) 4.5mOhm 1000 Hrs @ 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series SP-Cap HX
Package Tape & Reel
Type Polymer
Capacitance 560 µF
Tolerance ±20%
Voltage - Rated 2 V
ESR (Equivalent Series Resistance) 4.5mOhm
Lifetime @ Temp. 1000 Hrs @ 125°C
Temperature Range - Operating -55°C ~ 125°C
Applications General Purpose
Ripple Current @ High Frequency 8.5 A @ 100 kHz
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.079" (2.00mm)
Surface Mount Land Size 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting SMD (SMT)
Package / Case 2917 (7343 Metric)
Base Product Number EEF-HX
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names EEFHX0D561R4,P122452TR,P122452DKR,P122452CT,EEF-HX0D561R4-ND
Standard Package 3,500
Win Source Part Number 1177994-EEF-HX0D561R4
Ultra Librarian 3D Model Ultra Librarian EEF-HX0D561R4 CAD Model

Description

The EEF-HX0D561R4 is a polymer capacitor from Panasonic Electronic Components with a capacitance of 560 µF and a rated voltage of 2V.

  • Capacitance: 560 µF
  • Rated Voltage: 2V
  • Tolerance: ±20%
  • Equivalent Series Resistance (ESR): 4.5mOhm
  • Package: 2917 (7343 Metric) Tape and Reel
  • Mounting: Surface-Mount Device (SMD)
  • Operating Temperature Range: -55°C to 125°C
  • Ripple Current: 8.5A @ 100kHz
  • REACH: Unaffected
  • ECCN: EAR99
