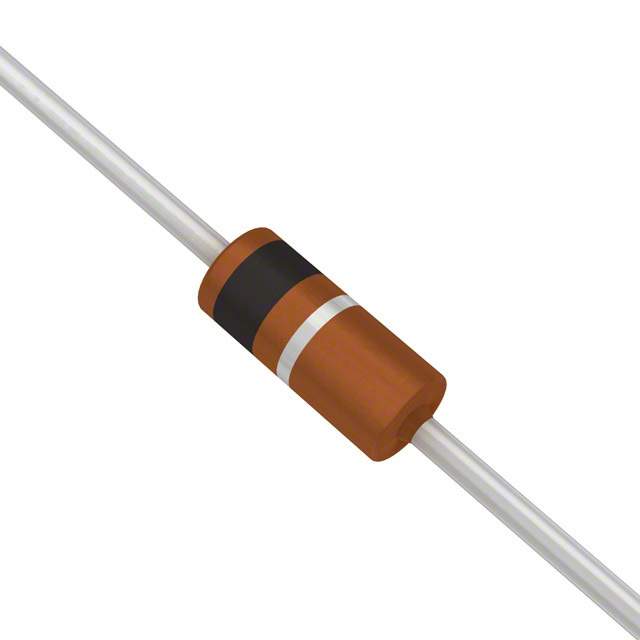

1N5250B-TR Real Image
Same model may have multiple batches, images only for reference.

1N5250B-TR

Part No 1N5250B-TR
Manufacturer Vishay
Catalog Diodes - Zener - Single
Description DIODE ZENER 20V 500MW DO35
Datasheet
1N5250B-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Voltage - Zener (Nom) (Vz) 20V
Tolerance ±5%
Maximum Power Dissipation 500mW
Impedance (Max) (Zzt) 25 Ohm
Current - Reverse Leakage @ Vr 100nA @ 15V
Voltage - Forward (Vf) (Max) @ If 1.1V @ 200mA
Mounting Through Hole
Case / Package DO-35
Win Source Part Number 110272-1N5250B-TR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 1N5250B-TR CAD Model

Description

Product Overview

The 1N5250B-TR is a surface-mount 20V Zener diode ideal for densely packed PCBs, offering precise voltage regulation in compact spaces.

Features and Benefits

  • Nominal Zener Voltage: 20V
  • Power Dissipation: 500mW
  • Surface Mount Package: Eases automated placement
  • Consistent Performance: In varying environmental conditions
  • Cost-Effective: Suitable for high-volume production

Applications and Projects

  • Portable Devices
  • DC-DC Converter Circuits
  • Automotive Systems
  • TFT Displays
  • PIC and AVR Applications

Additional Details

This diode's surface-mount technology allows for integration into modern electronic devices, ensuring a compact design without compromising functionality.
