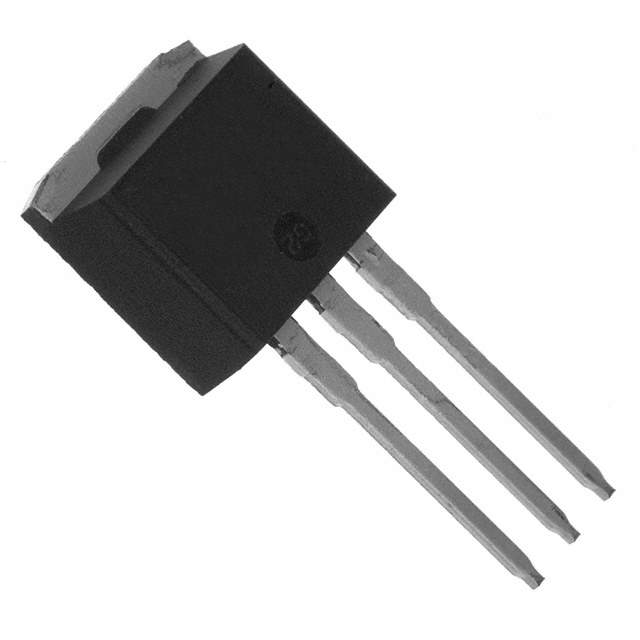

The 16CTQ100G-1 is a Schottky Rectifier Array manufactured by Vishay. It consists of two Schottky diodes in a common cathode configuration. These diodes are designed for high-frequency rectification and are commonly used in switching power supplies, freewheeling diodes, and polarity protection applications.

Applications

• Switching Power Supplies: Used as rectifier diodes to convert AC to DC with high efficiency.
• Freewheeling Diodes: Protects inductive loads from voltage spikes when switching.
• Polarity Protection: Prevents damage from reverse polarity connections.
• High-Frequency Rectification: Rectifies high-frequency signals with minimal losses.

Features

• Schottky Barrier Diodes: Offers low forward voltage drop and fast switching speed.
• Common Cathode Configuration: Simplifies circuit design and reduces component count.
• High Current Capability: Can handle high forward currents without damage.
• Low Reverse Leakage Current: Minimizes power loss in the reverse direction.

Benefits

• High Efficiency: Low forward voltage drop minimizes power dissipation, improving overall efficiency.
• Fast Switching: Enables high-frequency operation, reducing the size and cost of components.
• Reliable Performance: Designed for long-term reliability in demanding applications.
• Simplified Design: Common cathode configuration simplifies circuit layout and reduces component count.

Technical Specifications

The 16CTQ100G-1 is available in a through-hole or surface-mount package. Key specifications include reverse voltage (VR), forward current (IF), and forward voltage drop (VF). Refer to the Vishay datasheet for detailed specifications and application guidelines.
