Same model may have multiple batches, images only for reference.

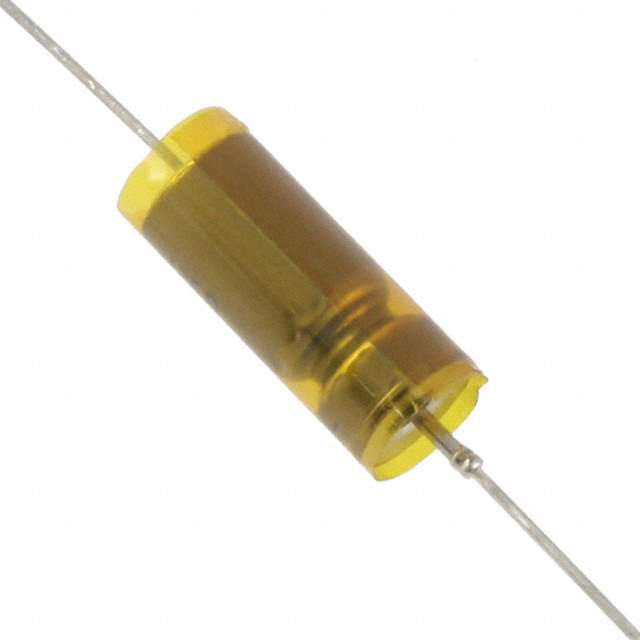

135D276X9125F6 Real Image
Same model may have multiple batches, images only for reference.

135D276X9125F6

Part No 135D276X9125F6
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 27UF 10% 125V AXIAL / 27 µF Hermetically Sealed Tantalum Capacitors 125 V Axial 3.5Ohm
Datasheet
135D276X9125F6 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Tantalum Capacitors
Mfr Vishay Sprague
Series 135D
Package Tray
Capacitance 27 µF
Tolerance ±10%
Voltage - Rated 125 V
Type Hermetically Sealed
ESR (Equivalent Series Resistance) 3.5Ohm
Temperature Range - Operating -55°C ~ 200°C
Mounting Type Through Hole
Package / Case Axial
Dimension 0.296" Dia x 0.641" L (7.52mm x 16.28mm)
Manufacturer Size Code F
Features Wet Tantalum
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.21.0020
Standard Package 1
Win Source Part Number 1196025-135D276X9125F6
Ultra Librarian 3D Model Ultra Librarian 135D276X9125F6 CAD Model

Description

The Vishay Sprague 135D276X9125F6 is a tantalum capacitor that has a capacitance of 27μF and a voltage rating of 125V.

  • Capacitance: 27μF
  • Voltage Rating: 125V
  • Mounting Type: Through-hole
  • ESR: 3.5Ohm
  • Manufacturer Size Code: F
  • Hermetically Sealed: Yes
  • Temperature Range: -55°C to 200°C
  • ECCN: EAR99
  • Package: Axial
  • Dimension: 0.296” Dia x 0.641” L (7.52mm x 16.28mm)
  • RoHS: Non-compliant
  • MSL Level: Not Applicable
  • Manufacturer: Vishay Sprague
