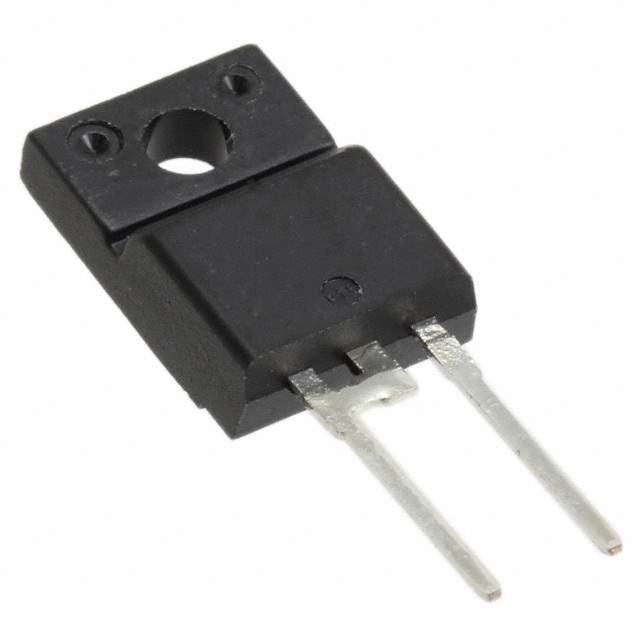

The 10ETF06FPPBF is a 10A, 600V Ultrafast Rectifier Diode manufactured by Vishay. This diode is designed for high-frequency and high-voltage applications requiring fast switching speeds and low reverse recovery current.

Applications:

• Output Rectification in SMPS (Switched-Mode Power Supplies)
• Freewheeling Diode in Inverter Applications
• Snubber Circuits
• Power Factor Correction (PFC) Circuits
• High-Frequency Welding Equipment

Features:

• Ultrafast Recovery Time: Typically 35 ns.
• Low Forward Voltage Drop: Reduces power dissipation.
• High Surge Current Capability: Can withstand high inrush currents.
• Soft Recovery Characteristics: Minimizes switching noise and EMI.
• Operating Temperature: -65°C to +175°C
• RoHS Compliant: Lead-free and environmentally friendly.
• Package: TO-220FP

Benefits:

• Increased Efficiency: Ultrafast recovery time minimizes switching losses, improving overall system efficiency.
• Reduced EMI: Soft recovery characteristics reduce switching noise and electromagnetic interference.
• Improved Reliability: High surge current capability ensures robust performance in demanding applications.
• Simplified Design: Low forward voltage drop simplifies thermal management.
• Environmentally Friendly: RoHS compliance ensures compliance with environmental regulations.
• Isolated Package: The TO-220FP (Fully Isolated Package) provides enhanced isolation, simplifying heat sink mounting and improving safety.

Additional Details:

The 10ETF06FPPBF is a planar diffused rectifier diode housed in a TO-220FP package. It is designed for applications requiring high speed, efficiency, and isolation. The device's soft recovery characteristics contribute to lower EMI and reduced stress on other circuit components. The 10A current rating and 600V voltage rating make it suitable for a wide range of power electronic applications where higher voltages are present. The "PBF" suffix indicates that the device is lead-free and RoHS compliant.
