Same model may have multiple batches, images only for reference.

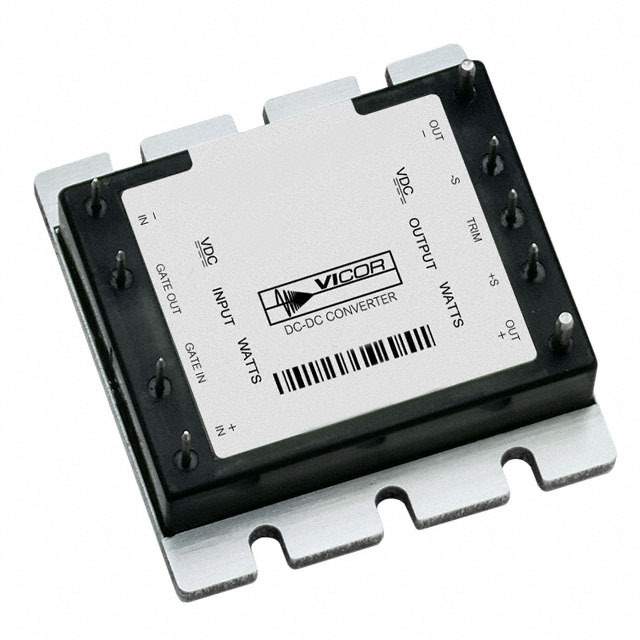

VI-J13-CZ Real Image
Same model may have multiple batches, images only for reference.

VI-J13-CZ

Part No VI-J13-CZ
Manufacturer Vicor Corporation
Catalog Power Supplies Board Mount DCDC Converters
Description CONVERTER MOD DC/DC 24V 25W
Datasheet
VI-J13-CZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Vicor Corporation
Series VI-J00
Packaging Bulk
Type Isolated Module
Number of Outputs 1
Input Voltage MIN 21V
Voltage Input MAX 32V
Voltage - Output 1 24V
Current - Output (Maximum) 1.04A
Power (Watts) 25W
Voltage - Isolation 3kV (3000V)
Applications ITE (Commercial)
Features OCP, SCP
Operating Temperature Range -25°C ~ 100°C
Efficiency 90%
Mounting Style Through Hole
Package Half Brick
Dimension 2.28" L x 2.40" W x 0.50" H (57.9mm x 70.0mm x 12.7mm)
Win Source Part Number 799070-VI-J13-CZ
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VI-J13-CZ CAD Model

Description

The Vicor Corporation VI-J13-CZ is an isolated module power supply.

  • Package: Half brick
  • Applications: ITE (Commercial)
  • Maximum Output Power: 25W
  • Efficiency: 90%
  • Voltage Isolation: 3kV (3000V)
  • Output Voltage: 24V
  • Features: OCP, SCP
  • Operating Temperature Range: -25°C ~ 100°C
  • Mounting Style: Through hole
  • Dimensions: 2.28" L x 2.40" W x 0.50" H (57.9mm x 70.0mm x 12.7mm)
  • Input Voltage Range: 21V to 32V
  • Maximum Output Current: 1.04A
