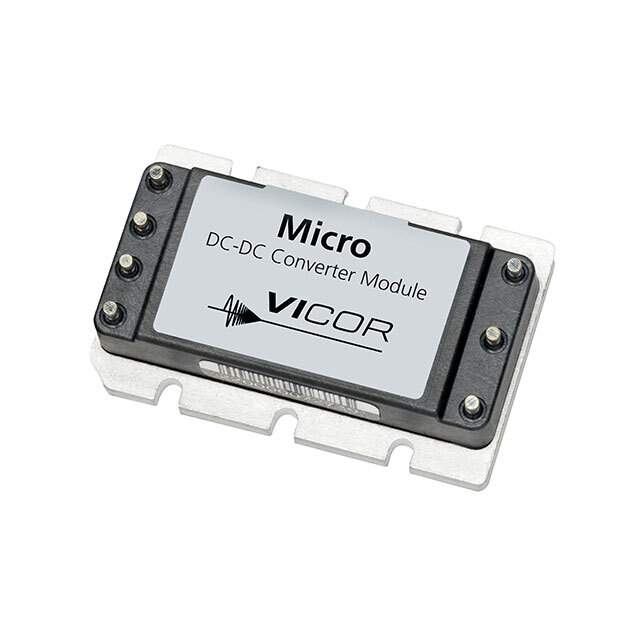

V24C12T100BL2 Real Image
Same model may have multiple batches, images only for reference.

V24C12T100BL2

Part No V24C12T100BL2
Manufacturer Vicor Corporation
Catalog Board Mount Modules
Description Module DC-DC 24VIN 1-OUT 12V 8.33A 100W Medical 7-Pin Quarter-Brick
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Efficiency 85.8 %
Features OVP, UVLO
Height 15.748 mm
Isolation Isolated
Isolation Voltage 3 kV
Lead Free Yes
Length 57.912 mm
Max Input Voltage 36 V
Maximum Operating Temperature 100 °C
Max Output Current 8.33 A
Max Power Dissipation 100 W
Min Input Voltage 18 V
Min Operating Temperature -40 °C
Mount Through Hole
Number of Outputs 1
Output Power 100 W
Output Voltage 12 V
Packaging Bulk
RoHS Compliant
Schedule B 8542390000
Voltage - Output 1 12 V
Width 36.83 mm
Win Source Part Number 1033397-V24C12T100BL2
Categories Board Mount Modules
Manufacturer Vicor Corporation
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian V24C12T100BL2 CAD Model

Description

The Vicor Corporation V24C12T100BL2 is a high-quality board mount module designed to provide an isolated output voltage of 12V and a maximum output power of 100W.

  • Output Voltage: 12V
  • Output Power: 100W (Maximum)
  • Features: OVP and UVLO
  • Efficiency: 85.8%
  • Maximum Input Voltage: 36V
  • Isolation Voltage: 3kV
  • Height: 15.748mm
  • Width: 36.83mm
  • Length: 57.912mm
  • Compliance: Lead-Free and RoHS Compliant
  • Popularity: low
  • Supply and Demand: shortage
