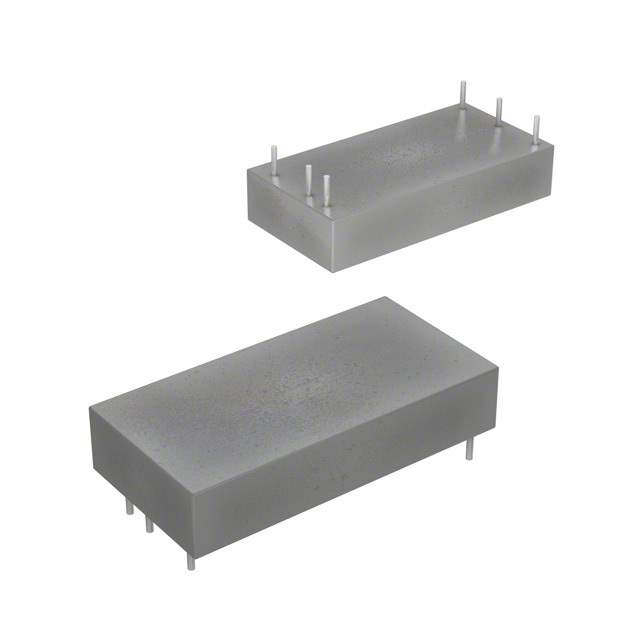

RP20-2415SFW Real Image
Same model may have multiple batches, images only for reference.

RP20-2415SFW

Part No RP20-2415SFW
Manufacturer Recom Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 15V 20W / Isolated Module DC DC Converter 1 Output 15V 1.33A 9V - 36V Input
Datasheet
RP20-2415SFW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Recom Power
Series POWERLINE RP20-FW (20W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 15V
Current - Output (Max) 1.33A
Power (Watts) 20 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features OCP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 63°C
Efficiency 86%
Mounting Type Through Hole
Package / Case 6-DIP Module
Dimension 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Control Features Enable, Active High
Base Product Number RP20-2415
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 30000956,945-2385-5,RP20-2415SFW-ND,RP202415SFW
Standard Package 9
Win Source Part Number 1220078-RP20-2415SFW
Ultra Librarian 3D Model Ultra Librarian RP20-2415SFW CAD Model

Description

The RP20-FW (20W) from POWERLINE is an isolated module DC/DC converter with OCP, OVP, SCP, UVLO features.

  • Application: ITE (Commercial)
  • Power Rating: 20 watts
  • Voltage Input Range: 9V to 36V
  • Number of Outputs: 1
  • Maximum Output Current: 1.33A
  • Voltage Output: 15V
  • Efficiency: 86%
  • Package: 6-DIP module
  • Temperature Range: -40°C ~ 63°C
  • ECCN: EAR99 compliant
