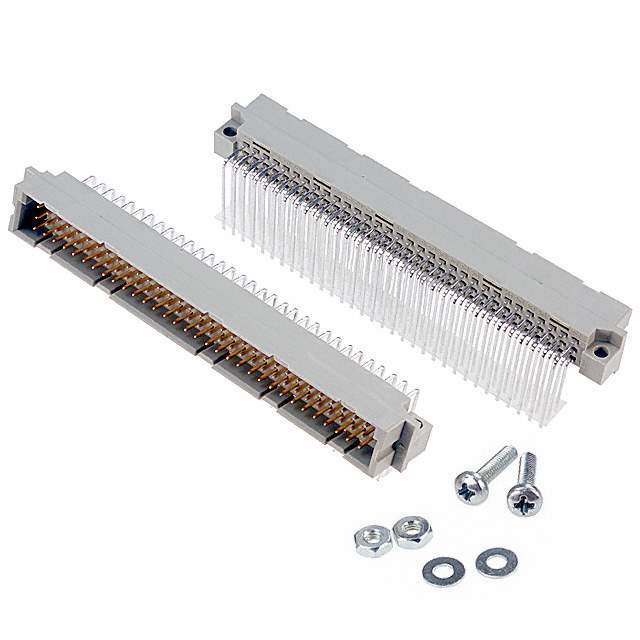

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - DIN 41612
Mfr Vector Electronics
Series RE96
Package Bulk
Product Status Obsolete
Connector Type Header, Male Pins
Number of Positions 96
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 3
Style 5
Level, Class 2
Mounting Type Through Hole, Right Angle
Termination Wire Wrap
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Temperature Range - Operating -55°C ~ 125°C
Current Rating (Amps) 1A
Material - Insulation Polycarbonate, Glass Filled
Standard Package 1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1351759-RE96MWR
Ultra Librarian 3D Model Ultra Librarian RE96MWR CAD Model

Description

The Vector Electronics RE96MWR is a backplane connector that is ideal for DIN 41612 interconnect applications.

  • Series: RE96
  • Number of Positions: 96
  • Pitch: 0.100" (2.54mm)
  • Connector Type: Header, Male Pins
  • Number of Positions Loaded: All
  • Number of Rows: 3
  • Termination: Wire Wrap
  • Contact Finish: Gold
  • Contact Finish Thickness: 10.0µin (0.25µm)
  • Packaging: Bulk
  • Insulation Material: Polycarbonate, Glass Filled
  • Material Flammability Rating: No Rating
  • Standard Package: 1
  • Style: 5
  • Level/Class: 2
  • Mounting Type: Through Hole, Right Angle
  • Operating Temperature: -55°C ~ 125°C
  • ECCN: EAR99
  • Current Rating (Amps): 1A
  • REACH: REACH Unaffected
  • HTSUS: 8536.69.4040
