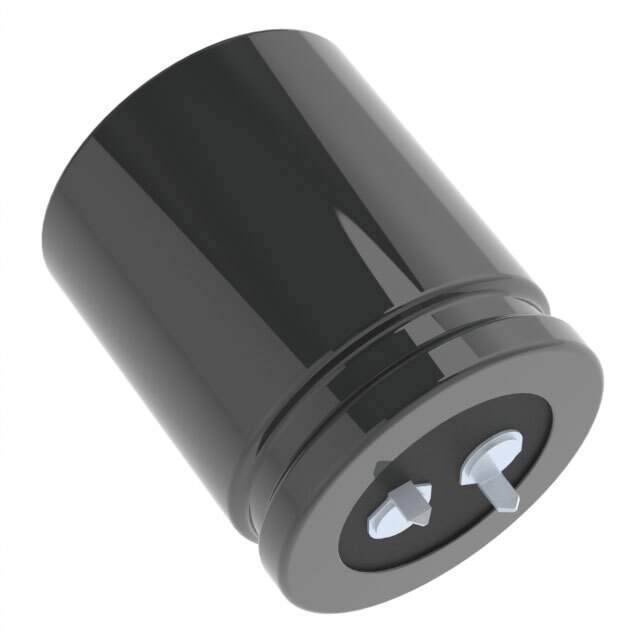

ESMH451VNN331MA40U Real Image
Same model may have multiple batches, images only for reference.

ESMH451VNN331MA40U

Part No ESMH451VNN331MA40U
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 330UF 20% 450V SNAP / 330 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 753mOhm @ 120Hz 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series SMH
Package Bulk
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 450 V
ESR (Equivalent Series Resistance) 753mOhm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -25°C ~ 85°C
Polarization Polar
Ripple Current @ Low Frequency 2 A @ 120 Hz
Ripple Current @ High Frequency 2.86 A @ 100 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.378" Dia (35.00mm)
Height - Seated (Max) 1.654" (42.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Standard Package 200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1340829-ESMH451VNN331MA40U
Ultra Librarian 3D Model Ultra Librarian ESMH451VNN331MA40U CAD Model

Description

This aluminum electrolytic capacitor is from the SMH series from United Chemi-Con.

  • Series: SMH
  • Capacitance: 330 µF
  • Tolerance: ±20%
  • Voltage Rating: 450V
  • ESR: 753mOhm @ 120Hz
  • Ripple Current: 2 A @ 120 Hz, 2.86 A @ 100 kHz
  • Lifetime: 2000 Hrs @ 85°C
  • Polarity: Polarized
  • Package: Radial, Can-Snap-In
  • Lead Spacing: 0.394" (10.00mm)
  • Size: 1.378" Dia (35.00mm)
  • Height: 1.654" (42.00mm)
  • Temperature Range: -25°C to 85°C
  • Packaging: Bulk
  • Standard Package: 200
  • MSL Level: 1 (unlimited)
  • REACH: Unaffected
  • HTSUS: 8532.22.0040
