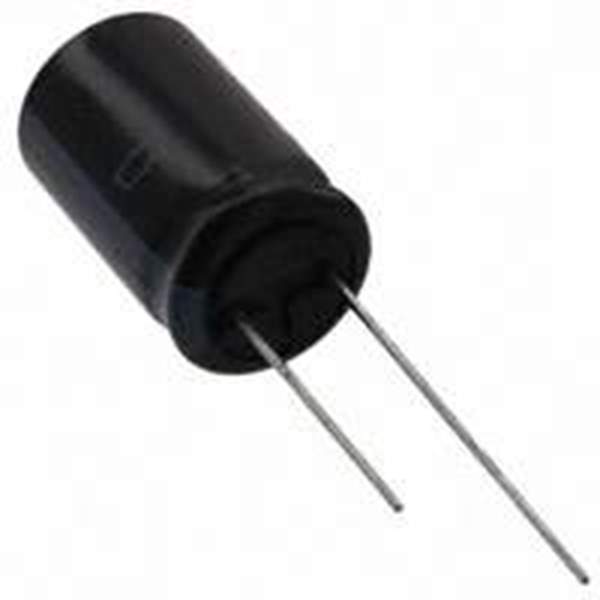

ESMG350ELL222ML25S Real Image
Same model may have multiple batches, images only for reference.

ESMG350ELL222ML25S

Part No ESMG350ELL222ML25S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 2200UF 20% 35V RADIAL / 2200 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series SMG
Package Bulk
Capacitance 2200 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.785 A @ 120 Hz
Ripple Current @ High Frequency 1.9278 A @ 100 kHz
Lead Spacing 0.295" (7.50mm)
Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 1.043" (26.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names Q4370511,565-1087
Standard Package 500
Win Source Part Number 961075-ESMG350ELL222ML25S
Ultra Librarian 3D Model Ultra Librarian ESMG350ELL222ML25S CAD Model

Description

The SMG series aluminum electrolytic capacitor is a general-purpose component suitable for various applications.

  • Capacitance: 2200 µF
  • Voltage Rating: 35 V
  • ESR: Not specified
  • Lifetime: 2000 hours @ 85°C
  • Polarization: Polarized
  • Package: Radial, Can
  • Mounting: Through-Hole
  • Ripple Current (Low Frequency): 1.785 A @ 120 Hz
  • Ripple Current (High Frequency): 1.9278 A @ 100 kHz
  • Diameter: 0.630" (16.00mm)
  • Height: 1.043" (26.50mm)
  • Packaging: Bulk
  • Standard Package: 500
