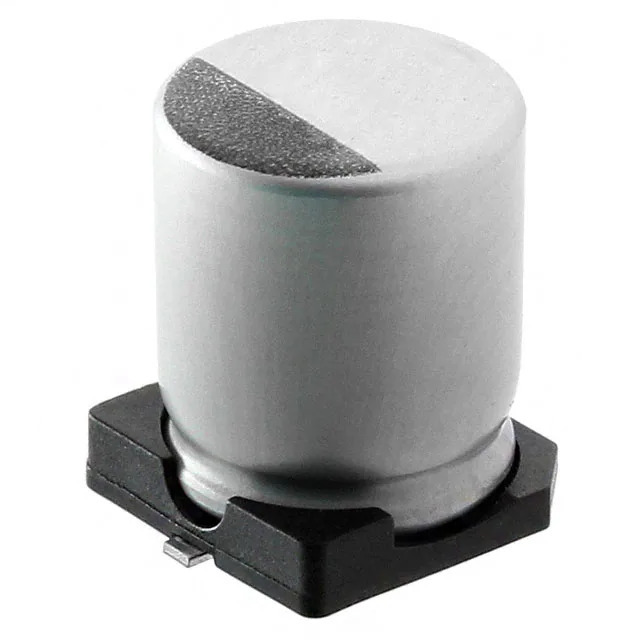

Same model may have multiple batches, images only for reference.

EMZR500ARA220ME61G

Name: EMZR500ARA220ME61G
Brand: United Chemi-Con
SKU: 1360378
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	EMZR500ARA220ME61G
Manufacturer	United Chemi-Con
Catalog	Aluminum Capacitors
Description	CAP ALUM 22UF 20% 50V SMD / 22 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 880mOhm @ 100kHz 2000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	United Chemi-Con
Series	Alchip™- MZR
Package	Tape & Reel
Product Status	Active
Capacitance	22 µF
Tolerance	±20%
Voltage - Rated	50 V
ESR (Equivalent Series Resistance)	880mOhm @ 100kHz
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	66 mA @ 120 Hz
Ripple Current @ High Frequency	165 mA @ 100 kHz
Lead Spacing	-
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.240" (6.10mm)
Surface Mount Land Size	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1360378-EMZR500ARA220ME61G
Ultra Librarian 3D Model	Ultra Librarian EMZR500ARA220ME61G CAD Model

Alternative Products

Description

The 1360378-EMZR500ARA220ME61G is a high-quality aluminum electrolytic capacitor from United Chemi-Con's Alchip™- MZR series.

Application: Automotive
Operating Temperature: -55°C to 105°C
Capacitance: 22 µF
Voltage Rating: 50 V
Tolerance: ±20%
ESR (Equivalent Series Resistance): 880mOhm @ 100kHz
Package: Radial, Can-SMD
Mounting Type: Surface Mountable
Size/Dimension: 0.197" Dia (5.00mm)
Height-Seated (Max): 0.240" (6.10mm)
Surface Mount Land Size: 0.209" L x 0.209" W (5.30mm x 5.30mm)
Lifetime: 2000 hours @ 105°C
Status: Active
REACH: Unaffected
ECCN: EAR99
Polarization: Polarized
