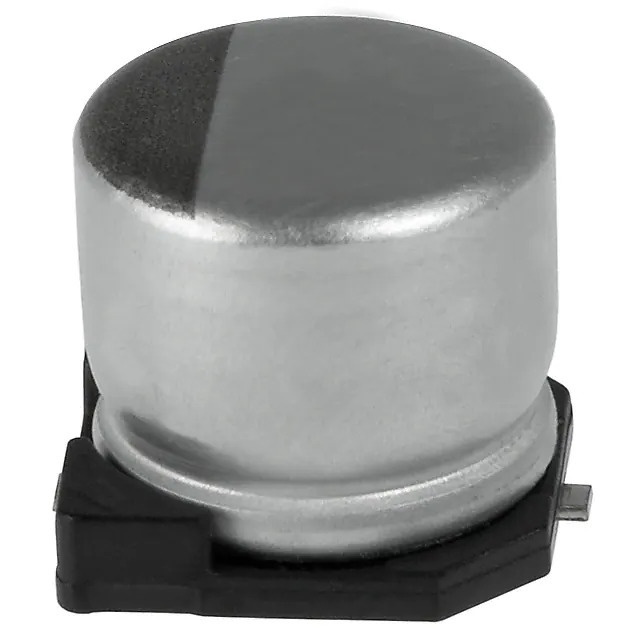

EMZA6R3ARA331MF80G United Chemi-Con
Same model may have multiple batches, images only for reference.

EMZA6R3ARA331MF80G

Part No EMZA6R3ARA331MF80G
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 330UF 20% 6.3V SMD / 330 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series Alchip™- MZA
Package Tape & Reel
Product Status Active
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 6.3 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 140 mA @ 120 Hz
Ripple Current @ High Frequency 280 mA @ 100 kHz
Impedance 340 mOhms
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.315" (8.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360236-EMZA6R3ARA331MF80G
Ultra Librarian 3D Model Ultra Librarian EMZA6R3ARA331MF80G CAD Model

Description

The Alchip™- MZA series aluminum electrolytic capacitor is a reliable component manufactured by United Chemi-Con.

  • Capacitance: 330 µF
  • Voltage Rating: 6.3 V
  • Applications: Automotive
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 140 mA @ 120 Hz
  • Ripple Current (High Frequency): 280 mA @ 100 kHz
  • Size: 0.248" diameter (6.30mm)
  • Seated Height: 0.315" (8.00mm)
  • Package: Radial, Can - SMD
  • Mounting Type: Surface Mount
  • Lifetime: 2000 hours @ 105°C
  • REACH: Unaffected
  • ECCN: EAR99
  • Polarization: Polar
  • Impedance: 340 mOhms
